Interface plug in relay, Harmony Electromechanical Relays, pre assembled, 12A, 1CO, with LED, 230V AC

MPN: RSB1A120P7PV
EAN: 3606489562717
Category: Harmony Electromechanical Relays

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

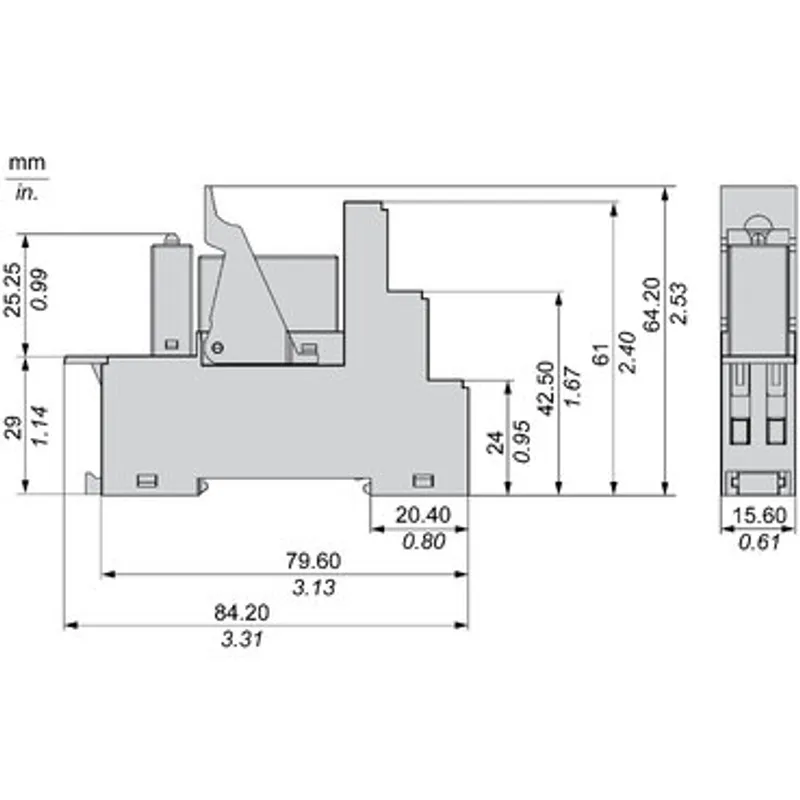

What is the Schneider Electric RSB1A120P7PV?

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 12A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.050Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.

Specifications

Range of product	Harmony Electromechanical Relays
Series name	RSB series
Product or component type	Pre-assembled plug-in relay with socket
Relay type	Interface relay
Contacts type and composition	1 C/O
Contact operation	Standard
Status LED	With
[Uc] control circuit voltage	120 V AC 50/60 Hz
Control type	Without lockable test button
[Ithe] conventional enclosed thermal current	12 A at -40…40 °C
Average resistance	32500 Ohm network: AC at 20 °C +/- 15 %
[Ue] rated operational voltage	180...250 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	3.6 kV conforming to IEC 61000-4-5
[Ie] rated operational current	12 A (AC-1/DC-1) NO conforming to IEC, 6 A (AC-1/DC-1) NC conforming to IEC
[Ui] rated insulation voltage	400 V conforming to IEC 60947
Maximum switching voltage	300 V DC conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc AC
Load current	12 A at 250 V AC, 12 A at 28 V DC
Minimum switching current	10 mA
Maximum switching capacity	3000 VA AC, 336 W DC
minimum switching voltage	12 V
Minimum switching capacity	120 mW at 10 mA, 12 V
Operating time	20 ms operating, 20 ms reset
Mechanical durability	10000000 cycles
Electrical durability	100000 cycles, 12 A at 250 V, AC-1 NO, 100000 cycles, 6 A at 250 V, AC-1 NC
Safety reliability data	B10d = 100000
Operating rate	<= 600 cycles/hour under load, <= 18000 cycles/hour no-load
Average coil consumption	0.75 VA AC
Contact terminal arrangement	Separate
Connections - terminals	Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
torque value	0.8 N.m, 0.8 N.m
Protection category	RT I
Operating position	Any position
Test levels	Level A group mounting
Device presentation	Complete product
Sale per indivisible quantity	30
Contacts material	Silver alloy (AgNi)
Shape of pin	Flat (PCB type)
Net weight	0.050 kg
Compatibility code	RSB
Dielectric strength	1000 V AC between contacts, 5000 V AC between coil and contact
Vibration resistance	+/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-40…70 °C (AC)
Standards	IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
Product certifications	CE, UL, CSA, EAC
Ambient air temperature for storage	-40…85 °C
Shock resistance	10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27

Packaging

Package 1	1 PCE, 6.420 cm × 1.560 cm × 8.420 cm (L × W × H), 53.000 g
Package 2	30 BB1, 27.500 cm × 18.000 cm × 8.200 cm (L × W × H), 1.783 kg
Package 3	180 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.550 kg
