Schneider Electric RPM23F7
Plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, 120V AC
- MPN
- RPM23F7
- EAN
- 3389119218016
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RPM23F7 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

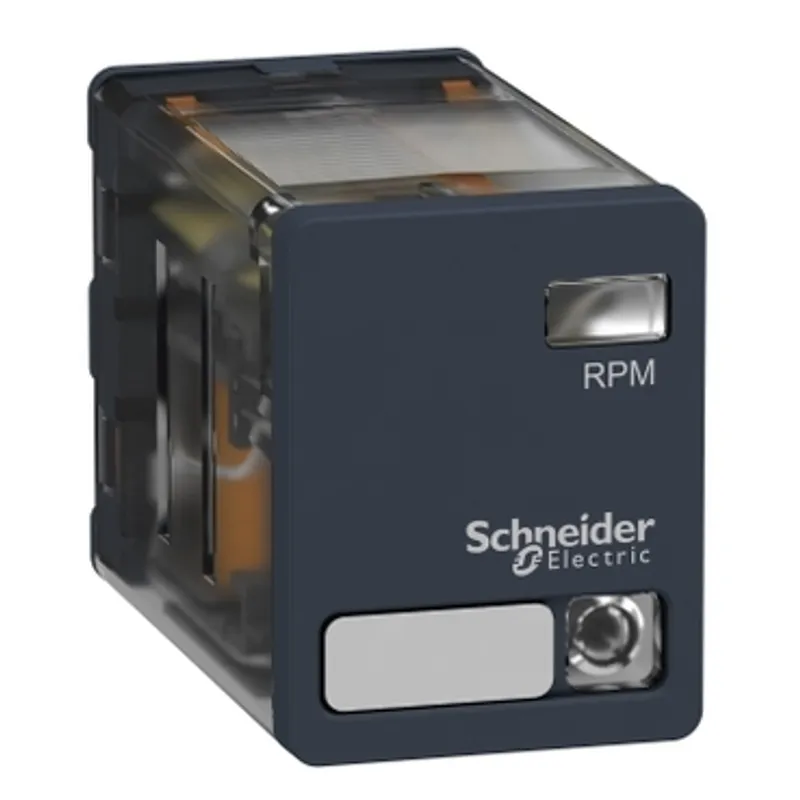

What is the Schneider Electric RPM23F7?

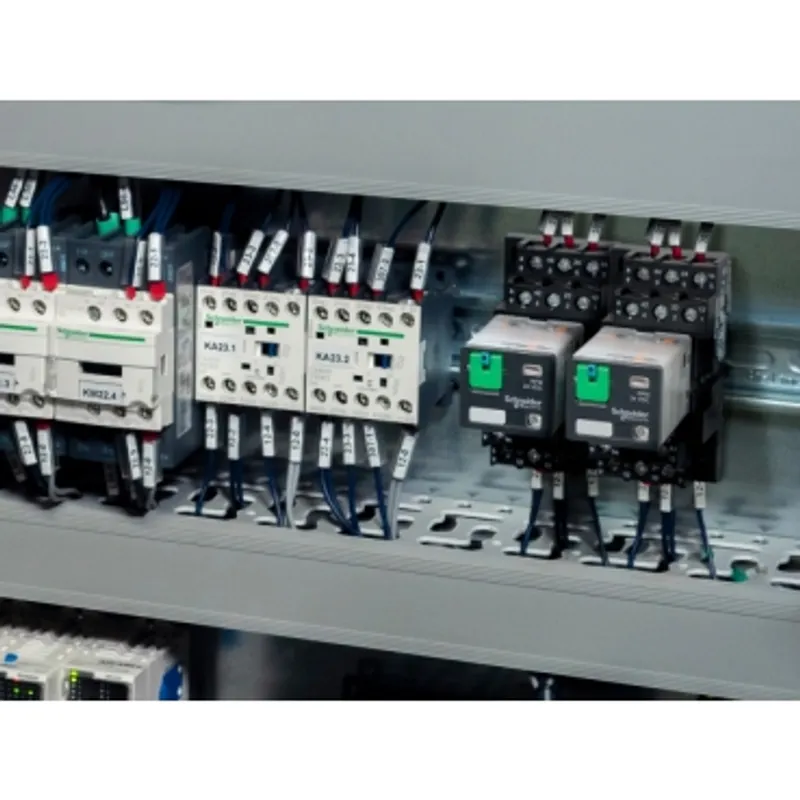

This Power Plug-In Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing machine reliability. It has large choice of number of contacts for high rated current use Its rated current is 15 A, is controlled with a 120 V AC circuit and has a latching of 2 C/O. They are intendedfor industrial machines, packaging, textile, heating, ventilation and air conditioning system.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RPM series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Relay type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…55 °C |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Control type | Without lockable test button |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL, 15 A at 28 V (DC) conforming to UL, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 7.5 A at 28 V (DC) NC conforming to IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 96...132 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Maximum switching capacity | 3750 VA, 420 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT I |
| Mounting support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net weight | 0.036 kg |
| Average coil consumption in VA | 1.1 at 60 Hz |
| Pollution degree | 3 |
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
| Product certifications | CSA, UL, EAC |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gn for in operation, 30 gn for not operating |
Packaging

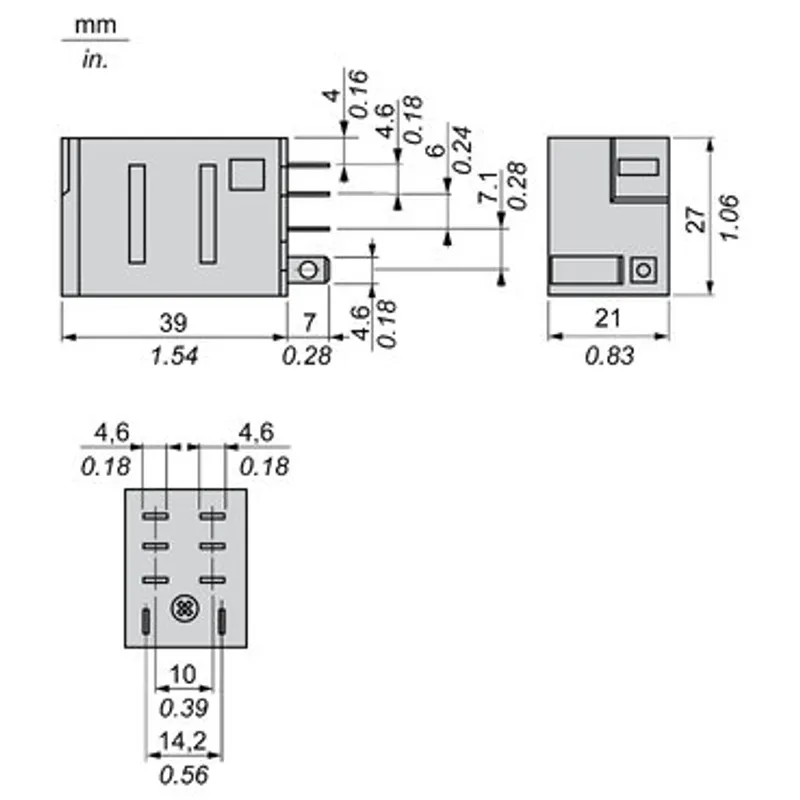

| Package 1 | 1 PCE, 3.900 cm × 2.100 cm × 2.700 cm (L × W × H), 36.000 g |
| Package 2 | 10 BB1, 12.500 cm × 10.200 cm × 3.000 cm (L × W × H), 400.000 g |
| Package 3 | 120 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 5.074 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RPM23F7: frequently asked questions
Can I still buy the RPM23F7 now that it is discontinued?
Yes. Schneider Electric has discontinued the RPM23F7, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can RPM23F7 be shipped?
RPM23F7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RPM23F7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RPM23F7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RPM23F7, subject to availability and destination.
