RPF2BJDPower relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC
Schneider Electric RPM11F7
Plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 120V AC
- MPN
- RPM11F7
- EAN
- 3389119401685
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RPM11F7 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RPM11F7?

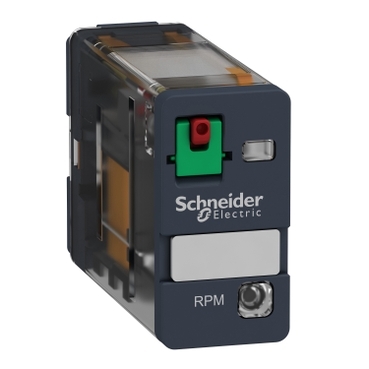

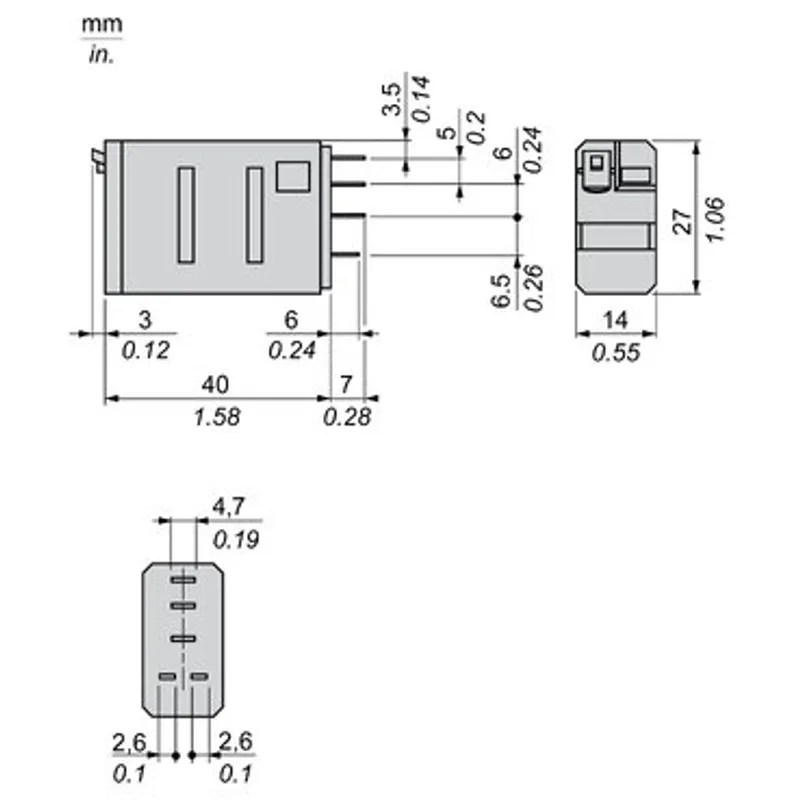

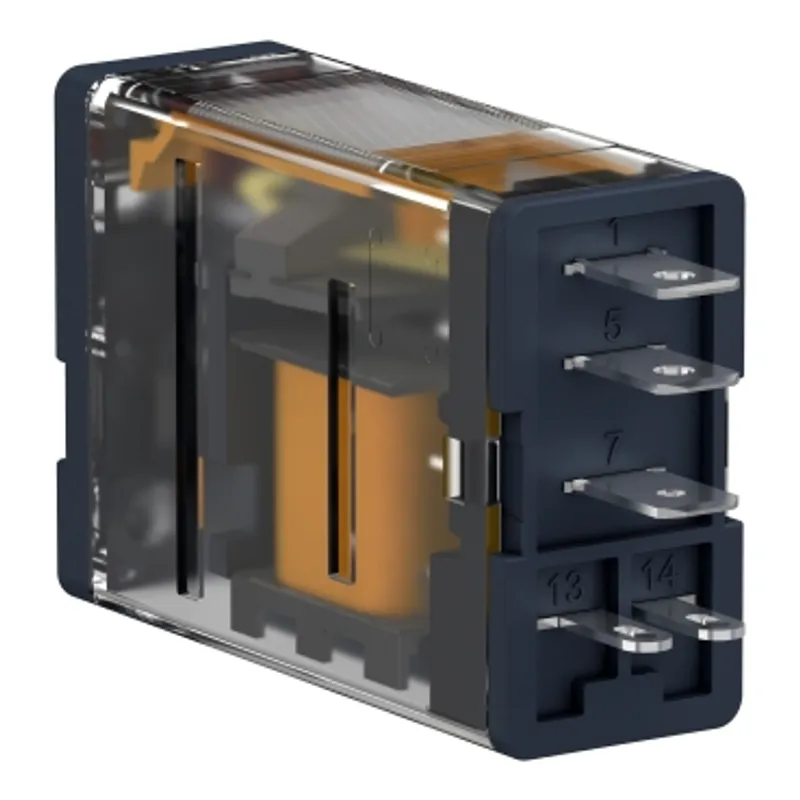

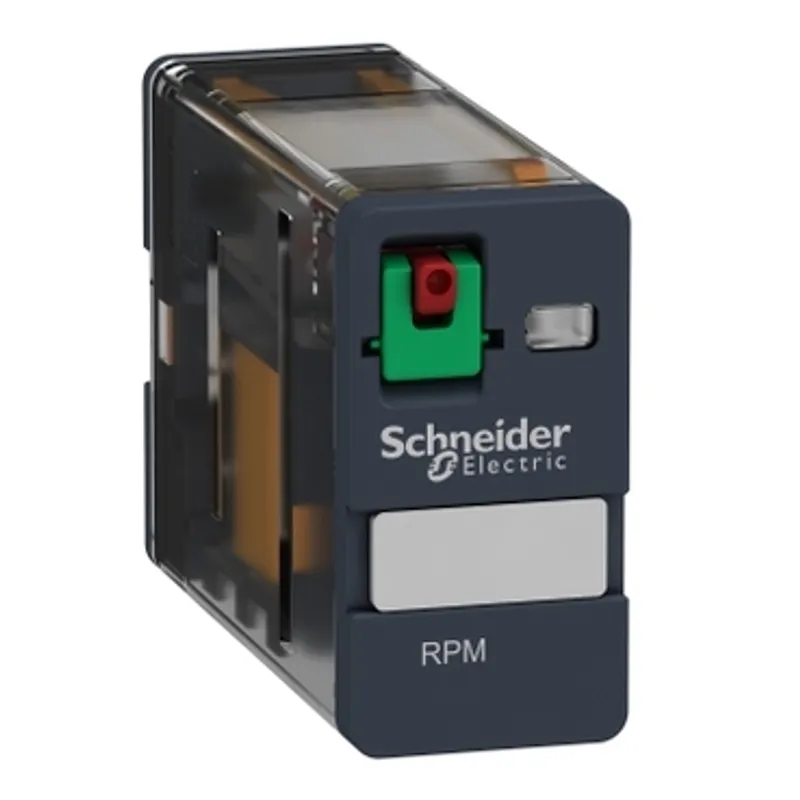

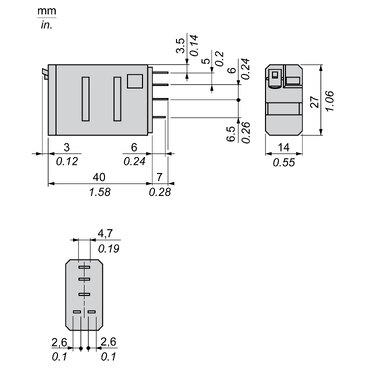

This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RPM series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 1 C/O |
| Relay type | Power relay |
| Status LED | Without |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…55 °C |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Control type | Lockable test button |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL, 15 A at 28 V (DC) conforming to UL, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 7.5 A at 28 V (DC) NC conforming to IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 96...132 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Maximum switching capacity | 3750 VA, 420 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT I |
| Mounting support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net weight | 0.026 kg |
| Average coil consumption in VA | 1.6 at 60 Hz |
| Pollution degree | 3 |
| Standards | UL 508, CSA C22.2 No 14, IEC 61810-1 |
| Product certifications | UL, EAC, CSA |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gn for in operation, 30 gn for not operating |
Packaging
| Package 1 | 1 PCE, 4.900 cm × 2.800 cm × 1.500 cm (L × W × H), 24.000 g |
| Package 2 | 10 BB1, 11.200 cm × 8.300 cm × 3.300 cm (L × W × H), 271.000 g |
| Package 3 | 160 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 4.634 kg |
