RPF2ABDPower relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 24V DC
Schneider Electric RPF2BB7
Power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 24V AC
- MPN
- RPF2BB7
- EAN
- 3389119401586
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RPF2BB7?

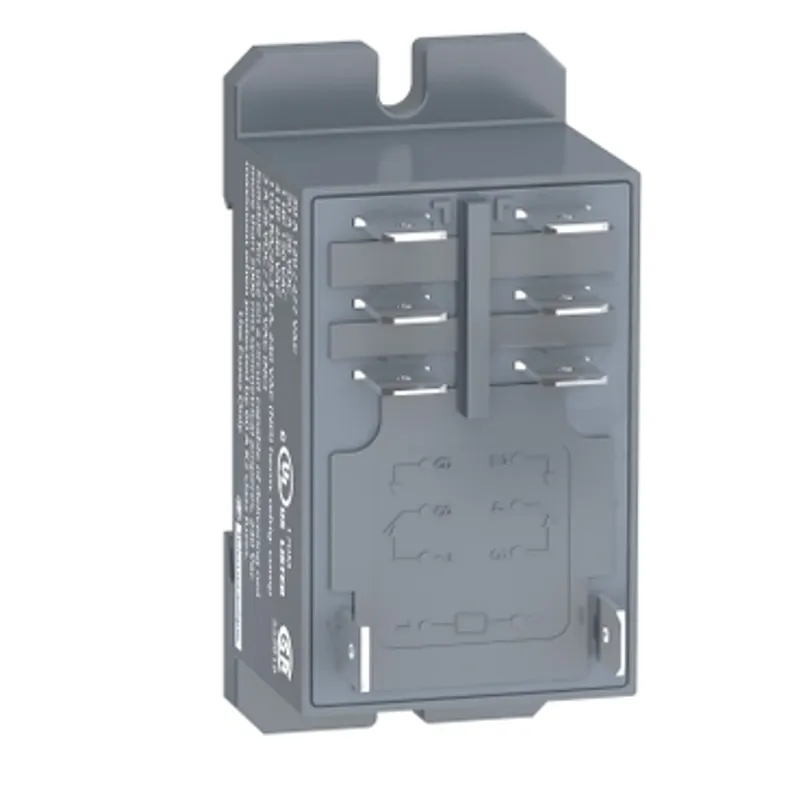

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RPF series |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 2 C/O |
| Relay type | Power relay |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Status LED | Without |
| Control type | Without lockable test button |
| [Ithe] conventional enclosed thermal current | 25 A at -40…55 °C relays side by side without a gap, 30 A at -40…55 °C 13 mm gap between two relays |
| Control circuit voltage limits | 19.2...26.4 V |
| [Ie] rated operational current | 30 A at 277 V (AC) NO conforming to UL, 20 A at 28 V (DC) NO conforming to UL, 30 A at 250 V (AC) NO conforming to IEC, 25 A at 28 V (DC) NO conforming to IEC, 3 A at 277 V (AC) NC conforming to UL, 3 A at 28 V (DC) NC conforming to UL, 3 A at 250 V (AC) NC conforming to IEC, 3 A at 28 V (DC) NC conforming to IEC |
| Average consumption | 4 VA at 60 Hz |
| CAD overall width | 33.7 mm |
| CAD overall height | 68.5 mm |
| CAD overall depth | 39.2 mm |
| Compatibility code | RPF |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc |
| Minimum switching current | 500 mA |
| Maximum switching capacity | 7500 VA/700 W |
| Average resistance | 170 Ohm at 20 °C +/- 15 % |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 10 % |
| Dielectric strength | 2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT II |
| Pollution degree | 3 |
| Mounting support | DIN rail, Panel |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver tin oxide |
| Shape of pin | Flat (faston type) |
| Net weight | 0.082 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| Product certifications | UL, CE, GOST, CSA |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation, 30 gn for not operating |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 5.000 cm × 3.500 cm (L × W × H), 85.000 g |
| Package 2 | 10 BB1, 20.000 cm × 15.000 cm × 5.500 cm (L × W × H), 950.000 g |
| Package 3 | 60 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 5.363 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RPF2BB7: frequently asked questions
When can RPF2BB7 be shipped?
RPF2BB7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RPF2BB7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RPF2BB7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RPF2BB7, subject to availability and destination.
