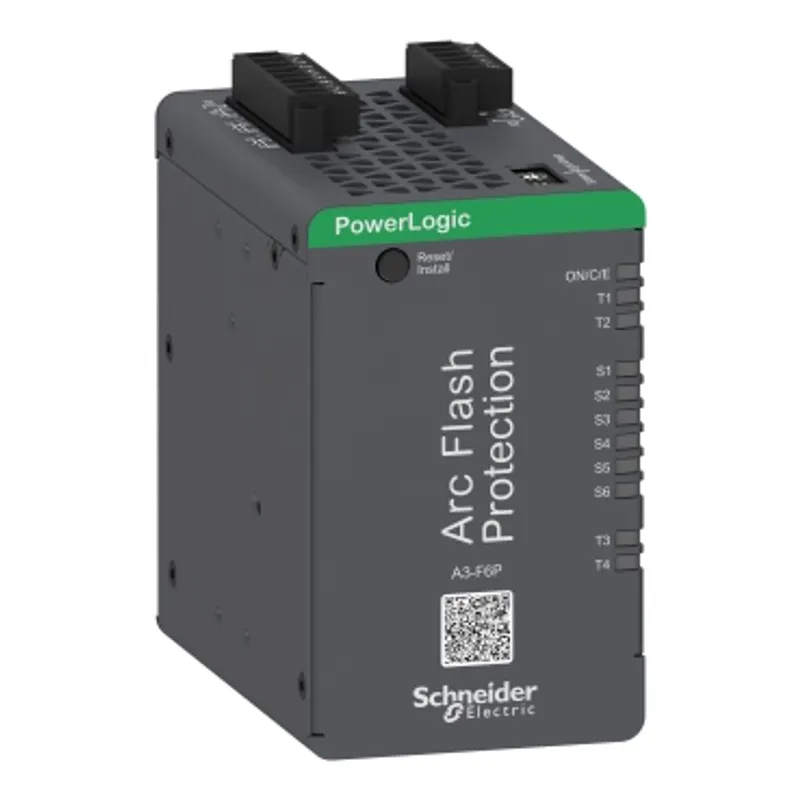

Schneider Electric REL52920
Arc protection relay, PowerLogic A3 F6P 6 point sensors 4 control arc device
- MPN
- REL52920
- EAN
- 3606485882444
- Category
- PowerLogic™ A1 and A3
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric REL52920?
The Schneider Electric PowerLogic A3 offer a scalable an arc flash mitigation solution for electrical cubicles. Designed to protect a single electrical panel or switchboard it can be installed in LV or MV cubicles. Based on light detection, the device can support 6 light sensors to detect the fault in different zones. PowerLogic A3F6P can be used alone or associated with other A3 devices. The PowerLogic A3 can be supplied by large scale range : 48 VAC to 240 VAC or 48 VDC to 240 VDC network. Product provides multiple trip outputs : 2 high speed output, 1 relay. It can be installed on DIN rail or flush panel with a mounting accessory frame REL52903.
Specifications
Specifications
| Range | PowerLogic |
| Product name | PowerLogic Arc |
| Device short name | A3-F6P |
| Product or component type | Arc fault detection device |
| Relay application | Arc flash |
| Protection type | Arc suppression 50ARC |
| number of inputs | 6 arc sensor |
| binary input voltage | 24...240 V AC/DC (voltage limits: 250 V) |
| number of outputs | 4 digital, 3 control relay |
| Output current limits | 20 mA at 24 V DC |
| Type of measurement | Arc |
| control functions | Switchgear internal arc detection |
| power supply | 24...240 V AC/DC |
| Supply | Power over Ethernet (PoE) |
| HMI | LED 12 |
| mounting | Flush, DIN rail |
| Connections - terminals | Removable screw terminal block |
| Height | Total: 135 mm |
| Width | Total: 70 mm |
| Depth | Total : 126 mm |
| Net weight | 0.9 kg |
| Electromagnetic compatibility | Emission tests conforming to IEC/EN 60255-26 ed. 3, Emission tests class A conforming to EN 55022, Emission tests conforming to CISPR 22, Emission tests class A conforming to EN 55011, Emission tests conforming to IEC 60255-25, Emission tests conforming to CISPR 11, EMC immunity A conforming to IEC/EN 60255-26 ed. 3, Damped oscillatory wave conforming to EN/IEC 61000-4-18, Electrostatic discharge level 4 conforming to EN/IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3, Electrical fast transient level 4 conforming to EN/IEC 61000-4-4, Surge immunity test level 3 conforming to EN/IEC 61000-4-5, Immunity to conducted interference caused by radio-electrical fields level 3 conforming to EN/IEC 61000-4-6, Immunity to magnetic fields conforming to EN/IEC 61000-4-8, Immunity to magnetic fields level 5 conforming to EN/IEC 61000-4-9, Immunity to voltage dips power lines (DC) conforming to EN/IEC 61000-4-29, Immunity to voltage dips conforming to EN/IEC 61000-4-11, Immunity to ripple conforming to EN/IEC 61000-4-17 |
| Standards | EN/IEC 60255-1, EN 60255-27 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Relative humidity | 0…95 % without condensation |
| Mechanical robustness | Vibrations (level: class 2) conforming to IEC 60255-21-1, Shocks (level: class 2) conforming to IEC 60255-21-2, Earthquakes (level: criteria A) : level 2 conforming to IEC 60255-21-3, Vibrations (level: Fc) conforming to IEC 60068-2-6, Shocks (level: Ea) conforming to IEC 60068-2-27 |
| Protective treatment | Conformal coating |
| Operating altitude | <= 2000 m |
| Environmental characteristic | Exposure to dry heat Bd conforming to EN/IEC 60068-2-2, Exposure to cold Ad conforming to EN/IEC 60068-2-1, Exposure to damp heat in service Db conforming to EN/IEC 60068-2-30, Exposure to damp heat in service Cab conforming to EN/IEC 60068-2-78, Temperature variation Nb conforming to IEC 60068-2-14 |
| Ambient air temperature for operation | -40…65 °C |
| Ambient air temperature for storage | -40…80 °C |
Packaging
| Package 1 | 1 PCE, 17.300 cm × 17.300 cm × 13.000 cm (L × W × H), 1.140 kg |
| Package 2 | 4 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.956 kg |
