Schneider Electric PCSPCTFCL5005R
AccuSine+ current transformer - 500/5 - Rectangular Split Core - 69.8x168.2mm
- MPN
- PCSPCTFCL5005R
- EAN
- 3606480892158
- Category
- PowerLogic™ AccuSine PFV+
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric PCSPCTFCL5005R?

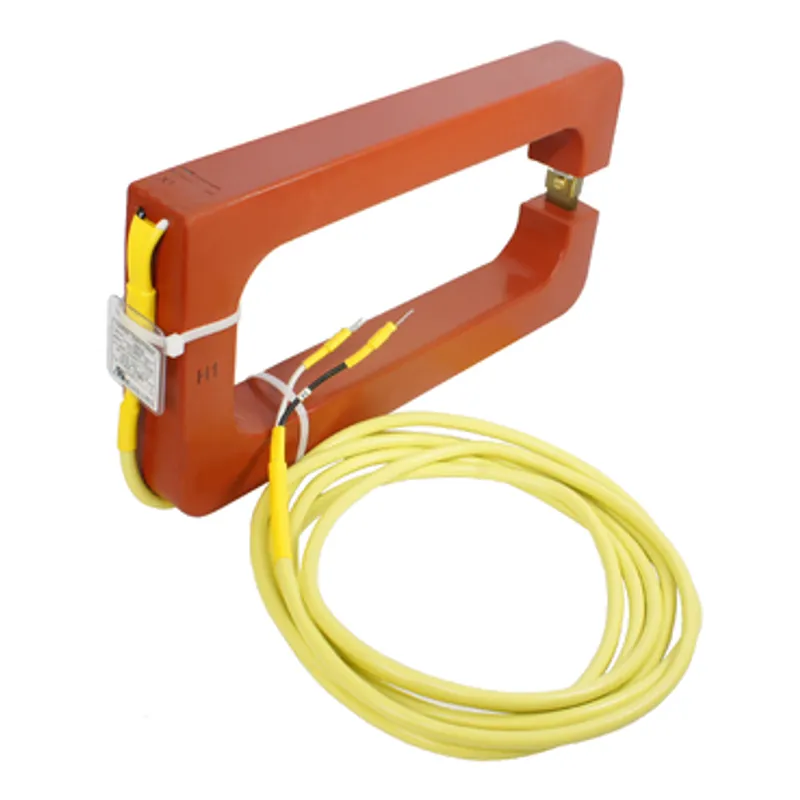

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 500A and a secondary rating of 5A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A and 3% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Specifications
| Range | AccuSine |
| Product or component type | Current transformer |
| Accessory / separate part category | Measurement accessory |
| Range compatibility | AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller |
| Current transformer type | Split core |
| Shape | Rectangular |
| Secondary current | 5 A |
| Current transformer ratio | 500/5 |
| Electrical connection | Flying lead: 3.65 m720 V |
| Input impedance | 0.12 Ohm |
| [In] rated current | 500 A |
| thermal factor | 1.25 at 30 °C, 1 at 55 °C |
| Network frequency | 50...400 Hz |
| Measurement accuracy | 3 % |
| Accuracy class | Class 3 |
| [Ue] rated operational voltage | < 720 V AC 50...400 Hz |
| [Uimp] rated impulse withstand voltage | 10 kV (50 µs) |
| Width | Outside: 139.7 mm, Inner: 69.8 mm |
| Height | Outside: 238 mm, Inner: 168.2 mm |
| Depth | Outside : 38.1 mm |
| Net weight | 1.9 kg |
| Standards | IEC 60044-1 |
| Product certifications | cURus, CE |
| Ambient air temperature for operation | -45…55 °C |
Packaging
| Package 1 | 1 PCE, 38.1 cm × 28.3 cm × 10.2 cm (L × W × H), 2.0 kg |
