Schneider Electric PCSPCTFCL500058

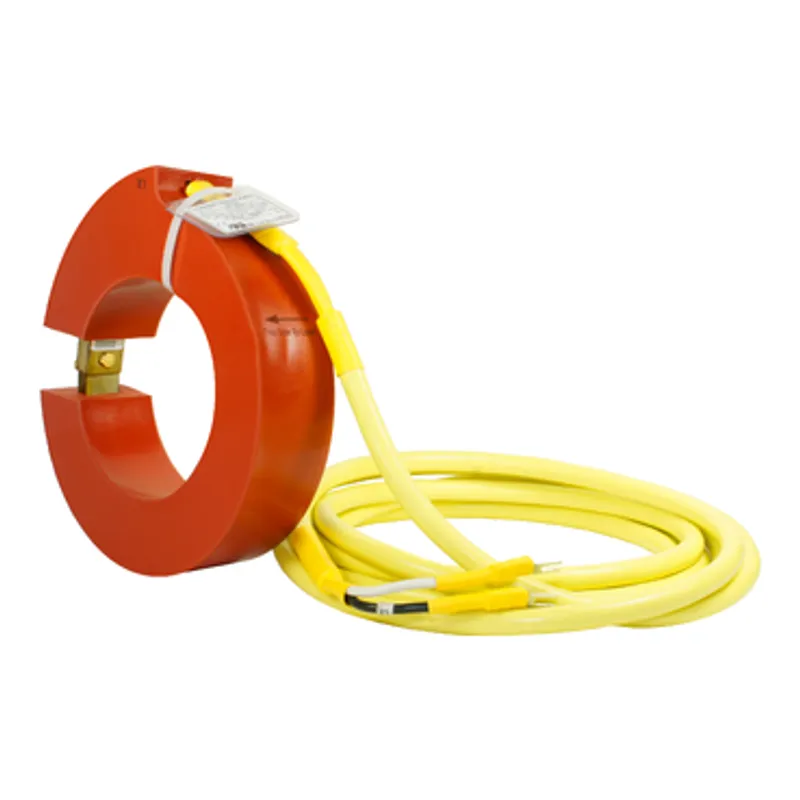

AccuSine+ current transformer - 5000/5 - Round Split Core - diam: 203.2mm
- MPN
- PCSPCTFCL500058
- EAN
- 3606480892097
- Category
- PowerLogic™ AccuSine PFV+
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric PCSPCTFCL500058?
This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 5000A and a secondary rating of 5A. The inner diameter of this coil is 203.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Specifications
| Range | AccuSine |
| Product or component type | Current transformer |
| Accessory / separate part category | Measurement accessory |
| Range compatibility | AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller |
| Current transformer type | Split core |
| Shape | Round |
| Secondary current | 5 A |
| Current transformer ratio | 5000/5 |
| Electrical connection | Flying lead: 3.65 m720 V |
| Input impedance | 1.8 Ohm |
| [In] rated current | 5000 A |
| thermal factor | 1.25 at 30 °C, 1 at 55 °C |
| Network frequency | 50...400 Hz |
| Measurement accuracy | 1 % |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | < 720 V AC 50...400 Hz |
| [Uimp] rated impulse withstand voltage | 10 kV (50 µs) |
| Depth | Outside : 38.1 mm |
| Diameter | 203.2 mm inner:, 266.7 mm outer: |
| Net weight | 2.5 kg |
| Standards | IEC 60044-1 |
| Product certifications | cURus, CE |
| Ambient air temperature for operation | -45…55 °C |
| Ambient air temperature for storage | -45…200 °C |
Packaging
| Package 1 | 1 PCE, 45.8 cm × 45.8 cm × 10.2 cm (L × W × H), 2.495 kg |
