NSYTRV42SCTerminal block, Linergy TR, screw type, knife disconnect, 2 points, 4mm², grey

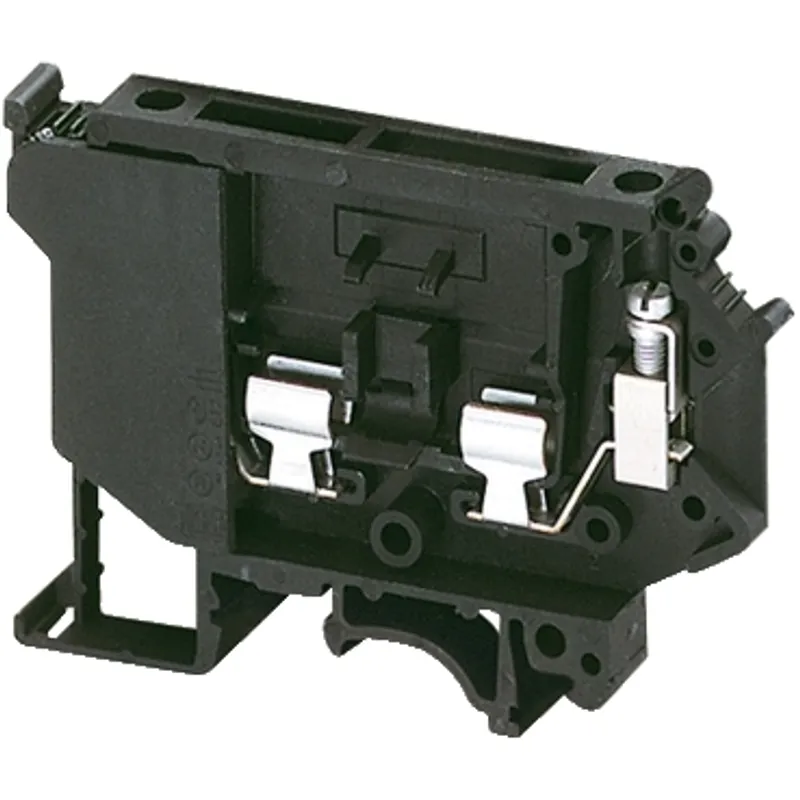

Schneider Electric NSYTRV42SF5LD
Terminal block, Linergy TR, fused disconnect type, for 5x20/25/30mm fuse, with led 12 to 30V, 2 points, black
- MPN
- NSYTRV42SF5LD
- EAN
- 3606480532344
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV42SF5LD?
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA/ UL. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Terminal block type | Fused disconnect |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 72.5 mm |
| Colour | Black |
| Quantity per set | Set of 50 |
| Fuse size | 5 x 20 mm |
| Width | 8.2 mm |
| Height | 56.5 mm |
| Connections - terminals | 1 x screw terminal: upstream, 1 x screw terminal: downstream |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 0 |
| Cable cross section | 0.2…4 mm², flexible without cable end, 0.2…4 mm², solid |
| Tightening torque | 0.5…0.8 N.m |
| Wire stripping length | 8 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 500 V conforming to EN/IEC 60947-7-1, 600 V UL, 600 V CSA |
| [In] rated current | 6.3 A conforming to EN/IEC 60947-7-1, 12 A UL, 6.3 A CSA |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 20 g |
| Provided equipment | 12...30 V light indicator |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | CSA, UL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 7.300 cm × 5.500 cm × 1.000 cm (L × W × H), 18.000 g |
| Package 2 | 50 BB1, 31.000 cm × 11.500 cm × 6.500 cm (L × W × H), 988.000 g |
| Package 3 | 400 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRV42SF5LD: frequently asked questions
When can NSYTRV42SF5LD be shipped?
NSYTRV42SF5LD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRV42SF5LD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRV42SF5LD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRV42SF5LD, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYTRV42SCDTerminal block, Linergy TR, screw type, knife disconnect, double level, 4 points, 4mm², grey
Schneider Electric
NSYTRV42SF5Terminal block, Linergy TR, fused disconnect type, for 5x20,5x25,5x30mm cartridge fuse, 2 points, 4mm², black
Schneider Electric
NSYTRV42SF5LATerminal block, Linergy TR, fused disconnect type, for 5x20/25/30mm fuse, with 110 to 250V led, 2 points, black
Schneider Electric
NSYTRV42SF6Terminal block, Linergy TR, fused disconnect type, for 6.3x32mm cartridge fuse, 2 points, 6mm², black
Schneider Electric
NSYTRV42SF6LATerminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with led 110 to 250V, 2 points, 4mm², black
Schneider Electric

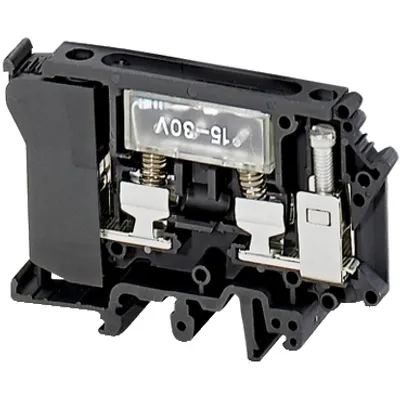

NSYTRV42SF6LDTerminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with light indicator 12 to 30V, black
