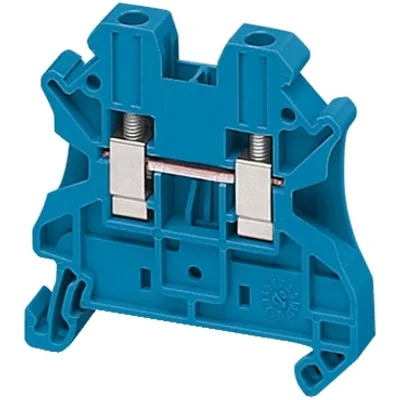

NSYTRV42BLTerminal block, Linergy TR, blue, 4mm², passthrough, 3 points, set of 10
Schneider Electric NSYTRV42MPE
Mini terminal block, Linergy TR, green-yellow, 4 mm², protective earth, 2 points, for 15mm din rail, Set of 50
- MPN
- NSYTRV42MPE
- EAN
- 3606480532498
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV42MPE?
Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, IECEx, GL, LR). Multi standards certified (UL, CSA, VDE).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Mini terminal block |
| Device short name | TRV |
| Terminal block type | Protective earth |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 30 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 34 mm |
| Connections - terminals | 1 x screw terminal: upstream, 1 x screw terminal: downstream |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 1 |
| Cable cross section | 0.2…6 mm², solid, 0.2…4 mm², flexible with cable end, 0.2…4 mm², flexible without cable end |
| Tightening torque | 0.6…0.8 N.m |
| Wire stripping length | 8 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSeT Pack 250, PanelSeT, TeSys, Mureva, PrismaSeT XS |
| Product compatibility | Spacial enclosures |
| Product certifications | UL, CSA, VDE |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 3.4 cm × 3.0 cm × 0.6 cm (L × W × H), 7.0 g |
| Package 2 | 50 BB1, 14.8 cm × 7.4 cm × 4.8 cm (L × W × H), 376 g |
| Package 3 | 150 S01, 40 cm × 15 cm × 15 cm (L × W × H), 1.323 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRV42MPE: frequently asked questions
When can NSYTRV42MPE be shipped?
NSYTRV42MPE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRV42MPE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRV42MPE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRV42MPE, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

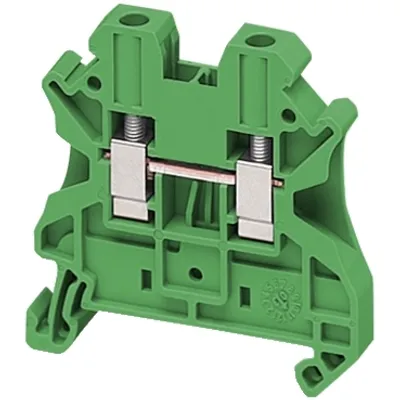

NSYTRV42GNTerminal block, Linergy TR, screw type, feed through, 2 points, 4mm², green, set of 50
Schneider Electric

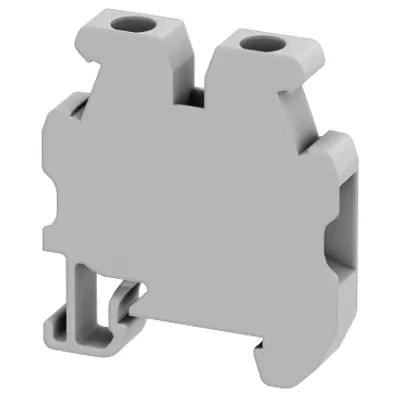

NSYTRV42MMini terminal block, Linergy TR, screw type, feed through, 2 points, 4mm², for 15mm din rail, gray, set of 50
Schneider Electric

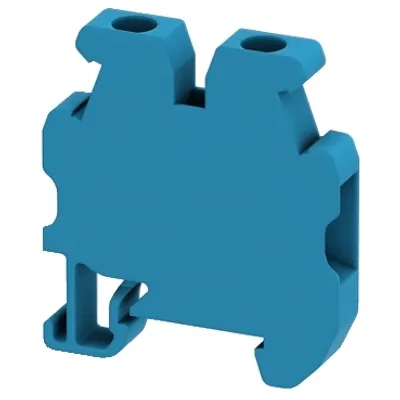

NSYTRV42MBLMini terminal block, Linergy TR, screw type, feed through, 2 points, 4mm², for 15mm din rail, blue, set of 50
Schneider Electric

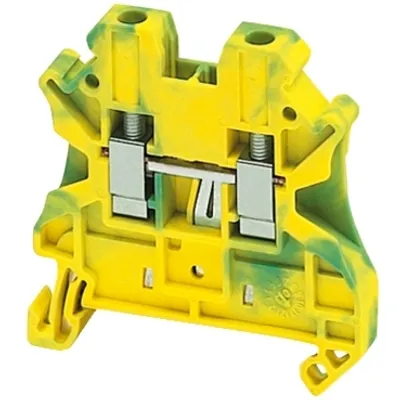

NSYTRV42PETerminal block, Linergy TR, green-yellow, 4mm², protective earth, 2 points, Set of 50
Schneider Electric

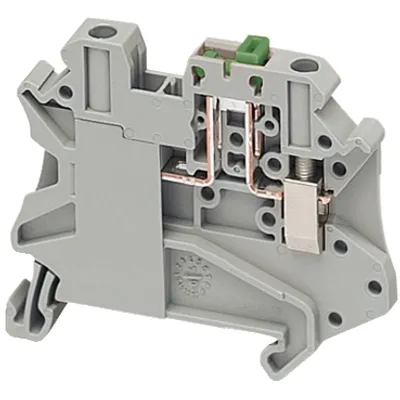

NSYTRV42SCTerminal block, Linergy TR, screw type, knife disconnect, 2 points, 4mm², grey
Schneider Electric

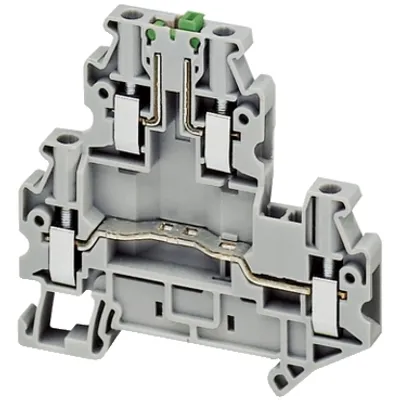

NSYTRV42SCDTerminal block, Linergy TR, screw type, knife disconnect, double level, 4 points, 4mm², grey
