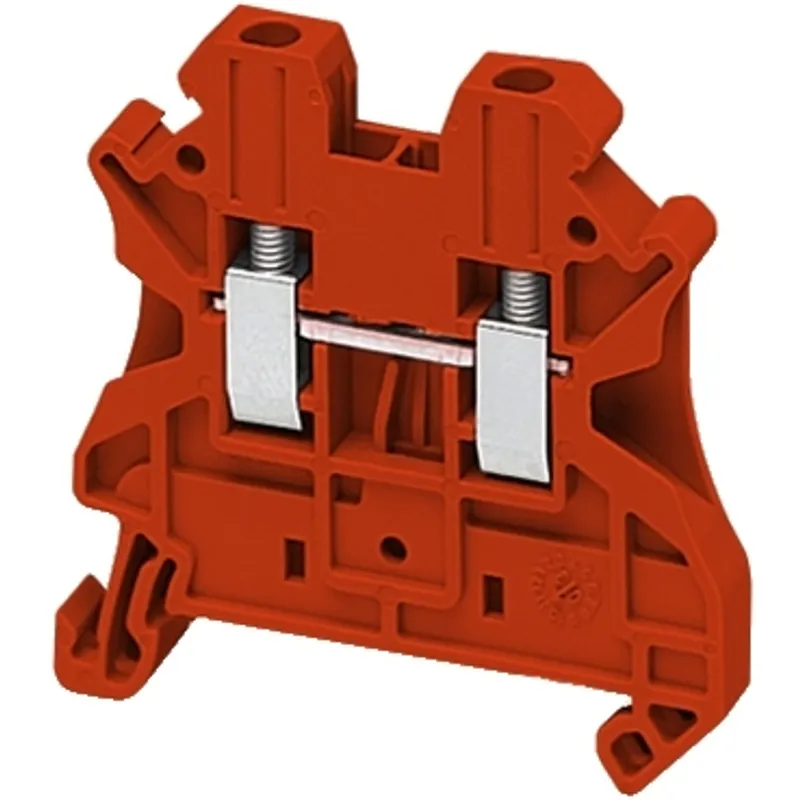

NSYTRV22MMini terminal block, Linergy TR, screw type, feed through, 2 points, 2.5 mm², for 15mm din rail, gray, set of 50
Schneider Electric NSYTRV22RD
Terminal block, Linergy TR, screw type, feed through, 2 points, 2.5mm², red, set of 50
- MPN
- NSYTRV22RD
- EAN
- 3606480531828
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV22RD?
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/UL. It has red surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 2.5 mm² |
| Length | 47.7 mm |
| Colour | Red |
| Quantity per set | Set of 50 |
| Width | 5.2 mm |
| Height | 47.5 mm |
| Connections - terminals | 1 x screw terminal: upstream (M3), 1 x screw terminal: downstream (M3) |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 0.14…4 mm², solid cable with cable end, 0.2…2.5 mm², flexible cable with cable end, 0.14…4 mm², solid cable without cable end, 0.14…4 mm², flexible cable without cable end |
| Tightening torque | 0.5…0.6 N.m |
| Wire stripping length | 9 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 1000 V conforming to EN/IEC 60947-7-1, 600 V CSA, 600 V UL |
| [In] rated current | 24 A conforming to EN/IEC 60947-7-1, 20 A UL, 20 A CSA |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 8.2 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | DNV, UL, GL, VDE, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 5.040 cm × 6.800 cm × 5.000 cm (L × W × H), 7.000 g |
| Package 2 | 50 BB1, 25.200 cm × 6.800 cm × 5.000 cm (L × W × H), 400.000 g |
| Package 3 | 1350 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.282 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRV22RD: frequently asked questions
When can NSYTRV22RD be shipped?
NSYTRV22RD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRV22RD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRV22RD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRV22RD, subject to availability and destination.
