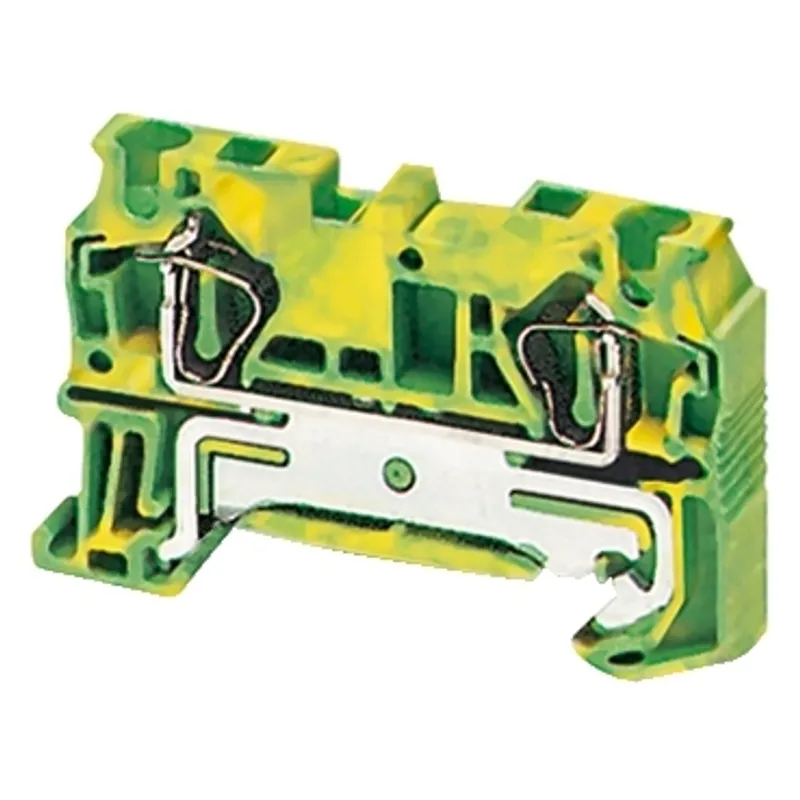

Schneider Electric NSYTRR42PE
Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50
- MPN
- NSYTRR42PE
- EAN
- 3606480532702
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYTRR42PE (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRR42PE?
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It could be connection and disconnection by flat screwdriver. It has Green/Yellow surface treatment. Sold in lots of 50 units. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRR |
| Terminal block type | Protective earth |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 56 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 1 x spring terminal: upstream, 1 x spring terminal: downstream |
| number of connections | 2 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.08…4 mm², solid, 0.2…4 mm², flexible with cable end, 0.08…4 mm², flexible without cable end |
| Wire stripping length | 10 mm |
| Tool type | Connection: flat screwdriver, Disconnection: flat screwdriver |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 12.7 g |
| Range compatibility | PrismaSeT P, PrismaSeT G, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | UL, GL, DNV, CSA, VDE |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 8.000 cm × 7.000 cm × 4.600 cm (L × W × H), 12.000 g |
| Package 2 | 50 BB1, 32.000 cm × 7.000 cm × 4.600 cm (L × W × H), 643.000 g |
| Package 3 | 850 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.396 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRR42PE: frequently asked questions
Can I still buy the NSYTRR42PE now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYTRR42PE, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the NSYTRP42PE as its successor — we can quote both.
When can NSYTRR42PE be shipped?
NSYTRR42PE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRR42PE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRR42PE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRR42PE, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYTRR26TTerminal block, Linergy TR, spring type, feed through, 3 levels connected, 6 points, 2.5mm², grey, set of 50
Schneider Electric
NSYTRR42Terminal block, Linergy TR, spring type, feed through, 2 points, 4mm², grey, set of 50
Schneider Electric
NSYTRR42BLTerminal block, Linergy TR, spring type, feed through, 2 points, 4mm², blue, set of 50
Schneider Electric
NSYTRR43Terminal block, Linergy TR, spring type, feed through, 3 points, 4mm², grey, set of 50
Schneider Electric

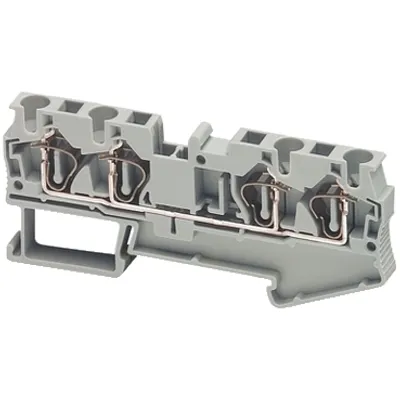

NSYTRR44Terminal block, Linergy TR, spring type, feed through, 4 points, 4mm², grey, set of 50
Schneider Electric

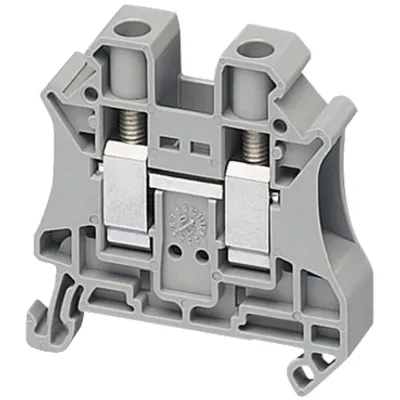

NSYTRV102Terminal block, Linergy TR, grey, 10mm², passthrough, 2 points, set of 10
Schneider Electric

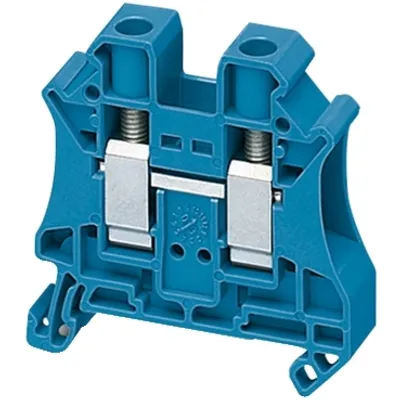

NSYTRV102BLTerminal block, Linergy TR, screw type, feed through, 2 points, 10mm², blue, set of 50
