Schneider Electric NSYTRP44DPE

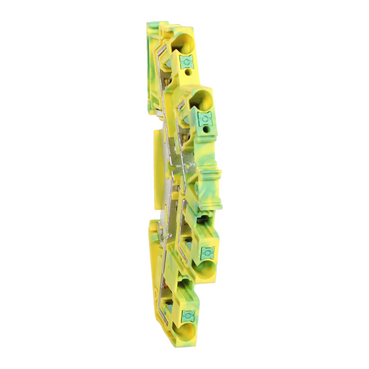

Terminal block, Linergy TR, push-in 4pts 4mm², double level, protective earth, green-yellow.
- MPN
- NSYTRP44DPE
- EAN
- 3606487170372
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRP44DPE?
Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. Mounting by clip-on and top connection by double-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRP |
| Terminal block type | Protective earth |
| Terminal block level | 2 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 92.4 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 55 mm |
| Connections - terminals | 1 x push-in: upstream, 1 x push-in: downstream |
| number of connections | 2 |
| Connection position | Top |
| Number of measurement input | 4 |
| Cable cross section | 0.08…4 mm², solid, 0.2…4 mm², flexible with cable end, 0.08…4 mm², flexible without cable end |
| Wire stripping length | 10 mm |
| Tool type | Connection: without tool, Disconnection: flat screwdriver |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 23.2 g |
| Range compatibility | PrismaSeT P, PrismaSeT G, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | DNV, VDE, UL, GL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 5.45 cm × 0.62 cm × 7.54 cm (L × W × H), 24.726 g |
| Package 2 | 50 CAR, 361 cm × 101 cm × 92 cm (L × W × H), 1.2363 kg |
| Package 3 | 300 S03, 40 cm × 30 cm × 30 cm (L × W × H), 7.8588 kg |
