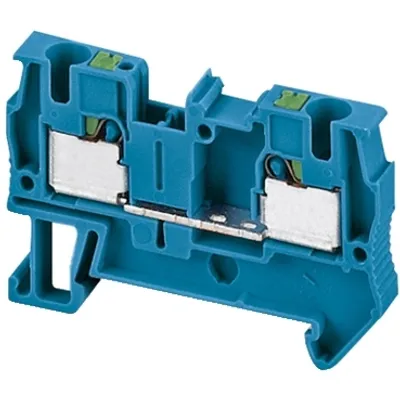

NSYTRP42BLTerminal block, Linergy TR, push-in type, feed through, 2 points, 4mm², blue, set of 50

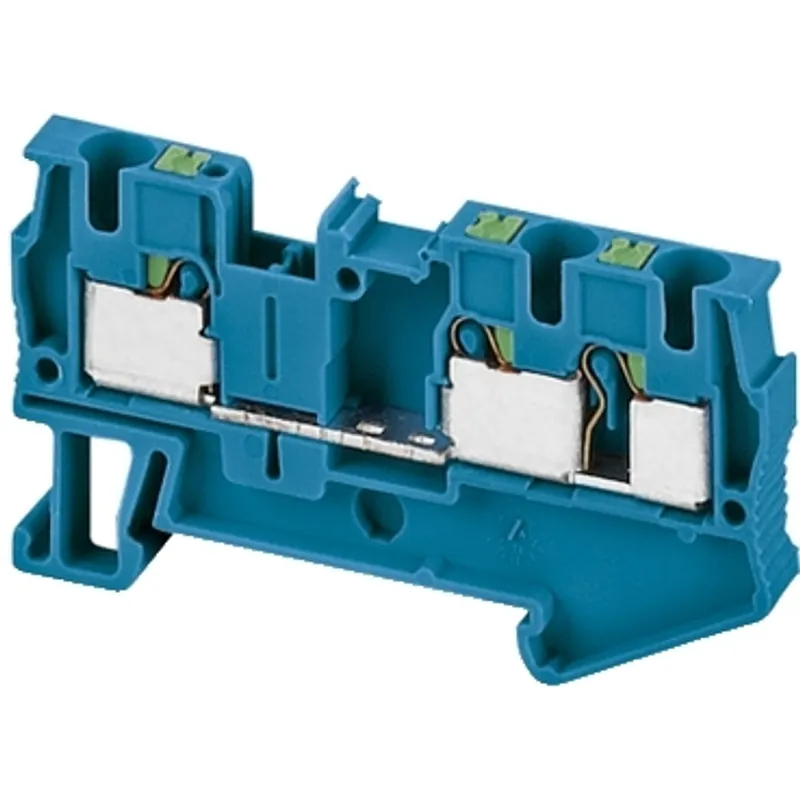

Schneider Electric NSYTRP43BL
Terminal block, Linergy TR, push-in type, feed through, 3 points, 4mm², blue, set of 50
- MPN
- NSYTRP43BL
- EAN
- 3606480533303
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRP43BL?
Linergy TR is terminal block for Passthrough type. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA and UL. It has blue surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRP |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 66.5 mm |
| Colour | Blue |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 1 x push-in: upstream, 2 x push-in: downstream |
| number of connections | 3 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.2…4 mm², flexible without cable end, 0.2…6 mm², solid with cable end, 0.8…4 mm², flexible with cable end, 0.2…4 mm², solid without cable end |
| Wire stripping length | 12 mm |
| Tool type | Connection: without tool, Disconnection: flat screwdriver |
| [Ue] rated operational voltage | 800 V conforming to EN/IEC 60947-7-1, 600 V CSA, 600 V UL |
| [In] rated current | 32 A conforming to EN/IEC 60947-7-1, 30 A CSA, 30 A UL |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 11.3 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | UL, CSA, GL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 6.858 cm × 3.556 cm × 0.762 cm (L × W × H), 9.072 g |
| Package 2 | 50 CAR, 27 cm × 7 cm × 5 cm (L × W × H), 615 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRP43BL: frequently asked questions
When can NSYTRP43BL be shipped?
NSYTRP43BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRP43BL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRP43BL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRP43BL, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

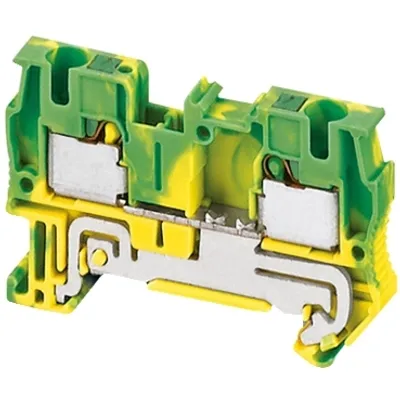

NSYTRP42PETerminal block, Linergy TR, push-in type, 2 points, 4mm², feed through, grounded, green-yellow, set of 50
Schneider Electric

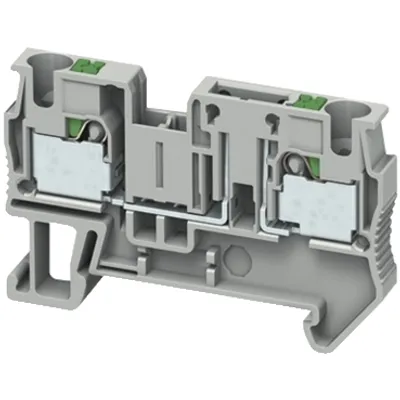

NSYTRP42TBTerminal block, Linergy TR, push-in type, basic disconnect terminal, 2 points, 4mm², grey, set of 50
Schneider Electric

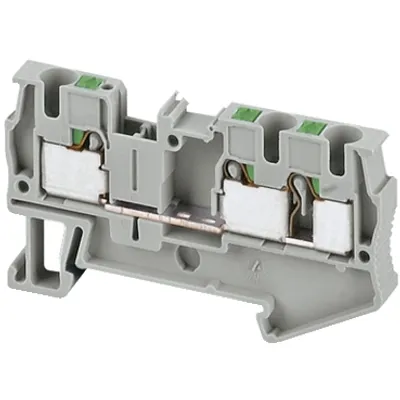

NSYTRP43Terminal block, Linergy TR, push-in type, feed through, 3 points, 4mm², grey, set of 50
Schneider Electric

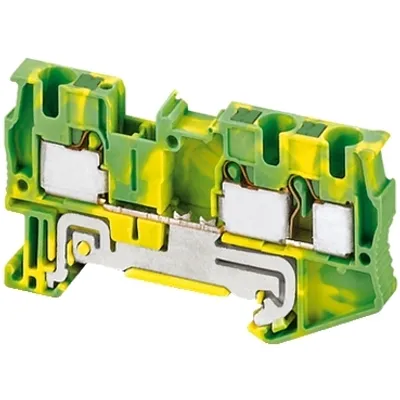

NSYTRP43PETerminal block, Linergy TR, push-in type, protective earth, 3 points, 4mm², green-yellow, set of 50
Schneider Electric

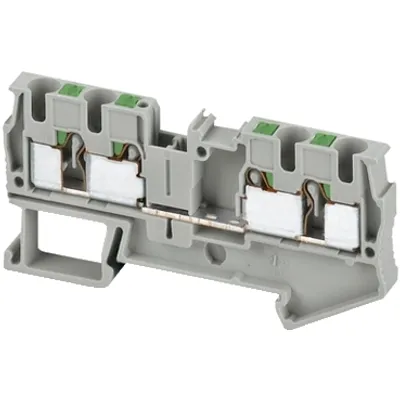

NSYTRP44Terminal block, Linergy TR, push-in type, feed through, 4 points, 4mm², grey, set of 50
