Schneider Electric
NSYTRP23Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², grey, set of 50

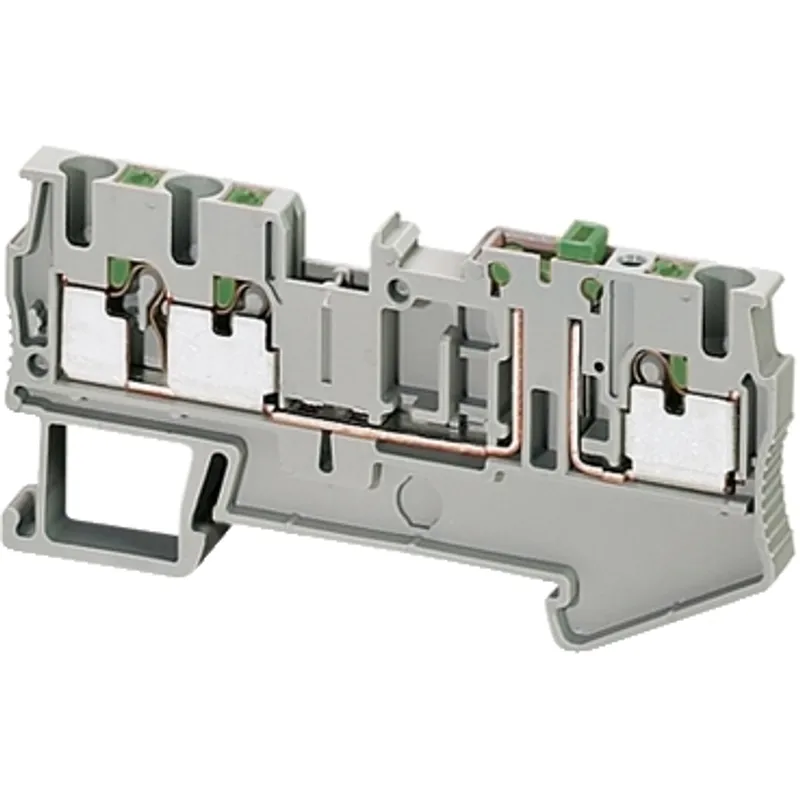

Schneider Electric NSYTRP23SC
Terminal block, Linergy TR, grey, 2.5mm², push-in type, knife disconnect, 3 points, set of 50
- MPN
- NSYTRP23SC
- EAN
- 3606480533365
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYTRP23SC (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRP23SC?
Linergy TR is terminal block for Blade Disconnect type. It belongs to linergy blade Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRP |
| Terminal block type | Blade disconnect |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 2.5 mm² |
| Length | 72 mm |
| Colour | Grey |
| Quantity per set | Set of 50 |
| Width | 5.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 1 x push-in: upstream, 2 x push-in: downstream |
| number of connections | 3 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.14…2.5 mm², flexible without cable end, 0.14…4 mm², solid |
| Wire stripping length | 10 mm |
| Tool type | Disconnection: flat screwdriver, Connection: without tool |
| [Ue] rated operational voltage | 300 V CSA, 300 V UL, 400 V conforming to EN/IEC 60947-7-1 |
| [In] rated current | 20 A conforming to EN/IEC 60947-7-1, 20 A UL, 20 A CSA |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 11 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | CSA, VDE, UL, GL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 27.0 cm × 7.0 cm × 5.0 cm (L × W × H), 11.0 g |
| Package 2 | 50 CAR, 27.0 cm × 7.0 cm × 5.0 cm (L × W × H), 603.0 g |
