Schneider Electric NSYTLG2FL

With 2 FL21 cutouts for S3D encl. RAL7035. L495xW220

MPN: NSYTLG2FL
EAN: 3606480168284
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYTLG2FL (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYTLG2FL?

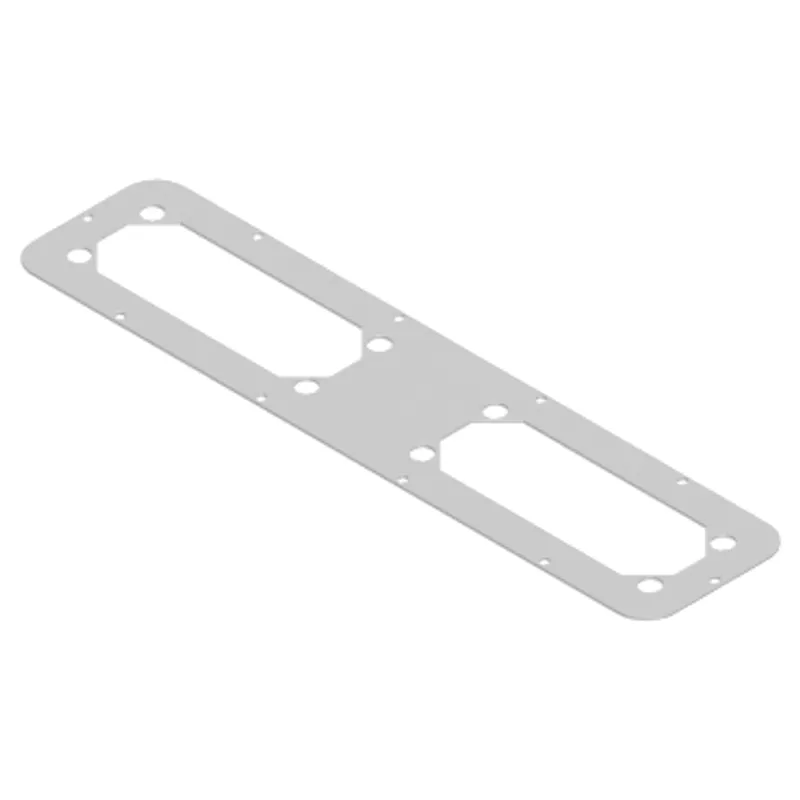

Multi-purpose cable gland plate for PanelSeT S3D and PanelSeT CRNG enclosures The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 495mm and real width is 500mm The height is 495mm and real height is 5mm The depth is 220mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom 2 cut-outs 194 x 62,5mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating "Suitable for FL21 membranes" "This product is qualified as a green premium, with minimal use of hazardous substances"

Specifications

Range	PanelSeT
Product or component type	Cable gland plate
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Range compatibility	PanelSeT S3D, PanelSeT PanelSeT CRNG
Mounting location	Enclosure bottom
Cable gland type	With FL cut-out
Device composition	Fixing elements, 1 plate, 1 separate gasket
Quantity per set	Set of 1
Material	Plate: steel, Seal: polyethylene (PE) foam
Colour	Plate: grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Height	495 mm, Real: 5 mm
Width	495 mm, Real: 500 mm
Depth	220 mm
Net weight	1.52 kg
thickness	1.5 mm
Number of cut-out	2 cut-outs
Accessory / separate part destination	For FL21 membranes
Cut-out dimensions	194 x 62.5 mm

Packaging

Package 1	1 PCE, 50.000 cm × 24.000 cm × 0.500 cm (L × W × H), 1.038 kg
Package 2	5 CAR, 60.000 cm × 40.000 cm × 20.000 cm (L × W × H), 5.800 kg
Package 3	100 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 129.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYTLG2FLPDF
