Schneider Electric NSYTJ3020

PanelSeT WM enclosure canopy W300xD200 Colour RAL7035.. Fixings supplied.

MPN: NSYTJ3020
EAN: 3606480198816
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

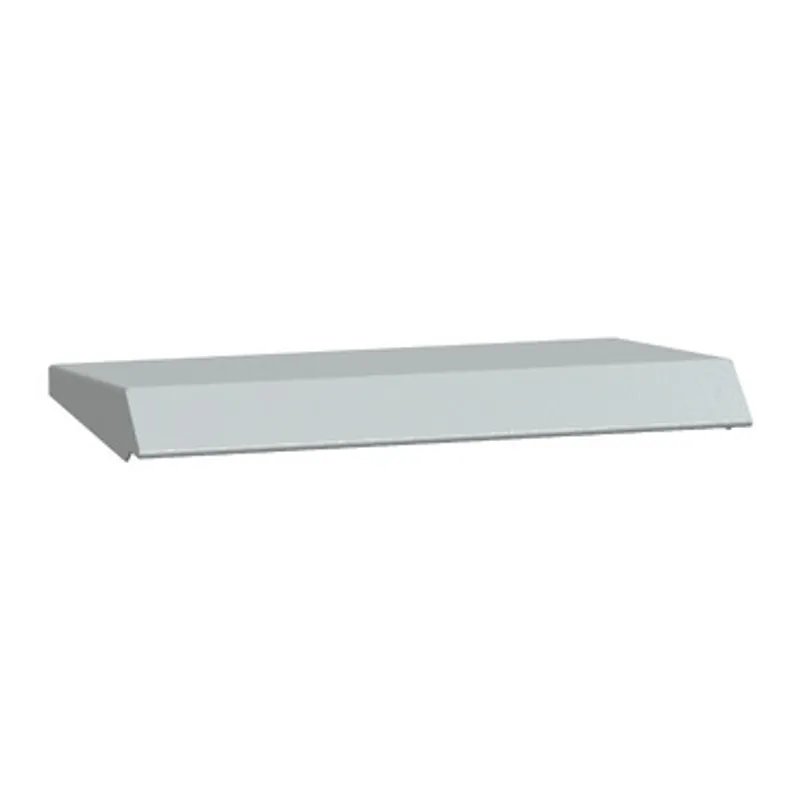

What is the Schneider Electric NSYTJ3020?

Multi-purpose canopy for PanelSeT CRN and PanelSeT S3D enclosures The canopy is to be installed on all enclosure models with 300mm width and 200mm depth The real width is 309mm and nominal width is 300mm The nominal depth is 200mm The height is 36mm Fixed by 4 screws - screw type M6 on top of enclosure The canopy is made from galvanised steel (color RAL 7035) Provides high resistance to impacts, temperature and bad weather The kit is made up of canopy, fixing elements and instruction sheet Net weight is 1,3kg

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Canopy
Application	Multi-purpose
Range compatibility	PanelSeT CRN, PanelSeT S3D
For enclosure nominal dimensions	-
Mounting location	On top of enclosure
Device composition	Canopy, fixing elements, instruction sheet
Material	Galvanised steel
Colour	Grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Fixing mode	By 4 screws - screw type M6
Height	36 mm
Width	Real: 309 mm, Nominal: 300 mm
Depth	Nominal : 200 mm
Net weight	1.3 kg
Mounting diameter	8 mm

Packaging

Package 1	1 PCE, 32.000 cm × 24.500 cm × 5.000 cm (L × W × H), 1.240 kg
Package 2	120 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 162.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYTJ3020PDF

NSYTJ3020: frequently asked questions

When can NSYTJ3020 be shipped?

NSYTJ3020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTJ3020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTJ3020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTJ3020, subject to availability and destination.
