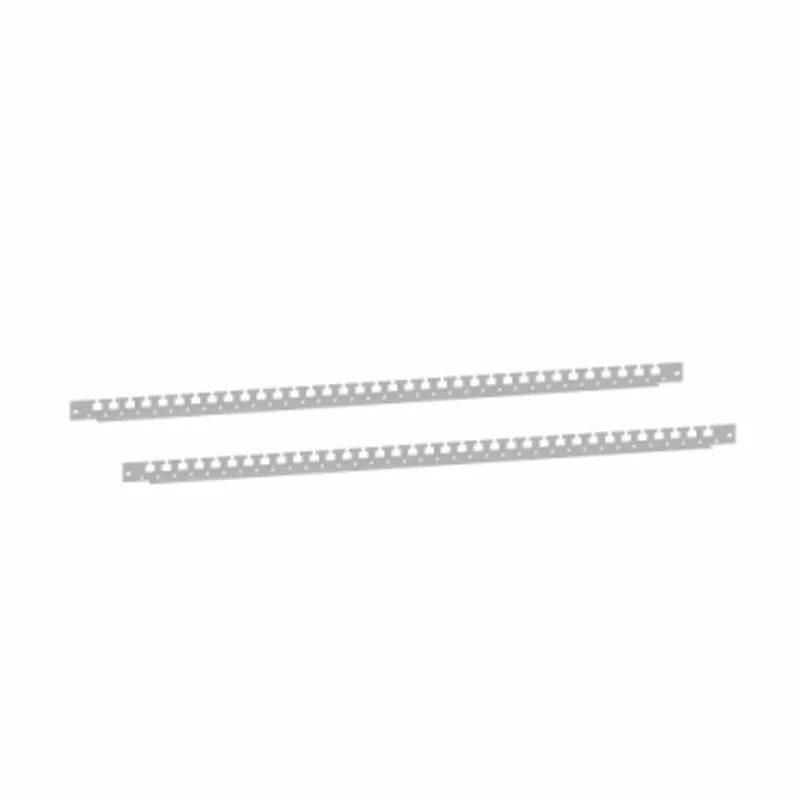

Set of 2 door cross rails for PanelSeT WM enclosure, width 1000mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.96 kg |
Shipping & availability
When can NSYTFPCRN10 be shipped?
NSYTFPCRN10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTFPCRN10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTFPCRN10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTFPCRN10, subject to availability and destination.
Schneider Electric Set of 2 door cross rails for PanelSeT WM enclosure, width 1000mm, manufacturer part number NSYTFPCRN10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door cable-guide cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Range compatibility | PanelSeT S3D, CRN, S3X enclosures, PanelSeT enclosures with a height from 400 mm for PanelSeT S3D/CRN enclosures, PanelSeT enclosures with a height from 500 mm for PanelSeT S3X enclosures |
| Device composition | Fixing elements, 2 x cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By 2 screws - screw type self tapping - on door reinforcement frame location |
| Adjustment | At the required height for on door reinforcement frame |
| Height | 30 mm |
| Width | Nominal: 1000 mm, Real: 932 mm |
| Depth | 14 mm |
| Net weight | 0.956 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 93.500 cm |
| Package 1 Weight | 956.000 g |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 47.800 kg |
| Warranty | 18 months |
