Schneider Electric NSYTBS292412H

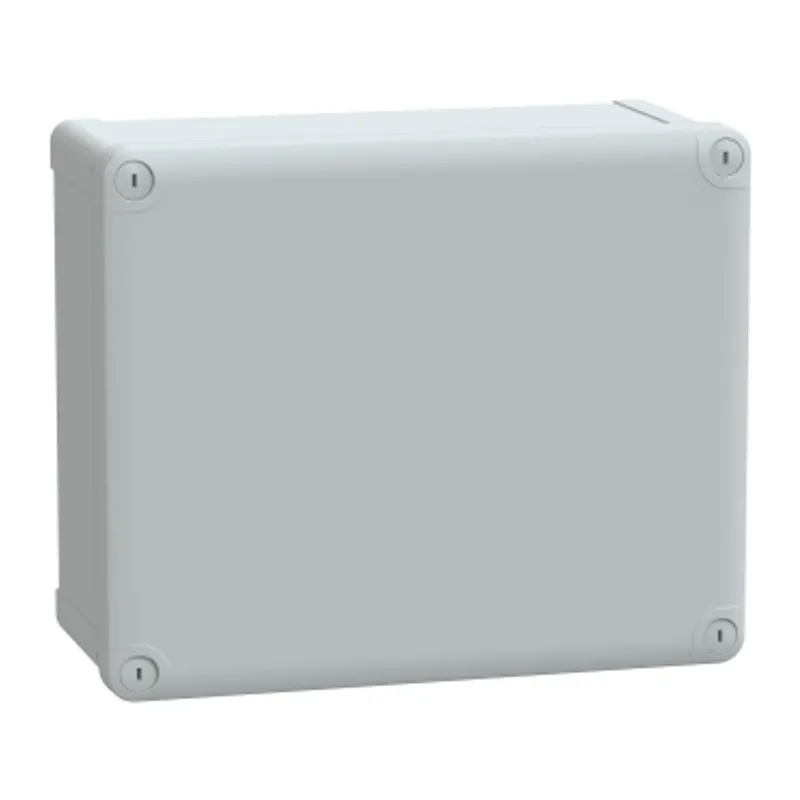

ABS industrial box, PanelSeT TBS, 241x128x291mm, int. 225x120x275mm, high plain cover, IP66, IK07, RAL 7035
- MPN
- NSYTBS292412H
- EAN
- 3606480165375
- Category
- Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYTBS292412H?

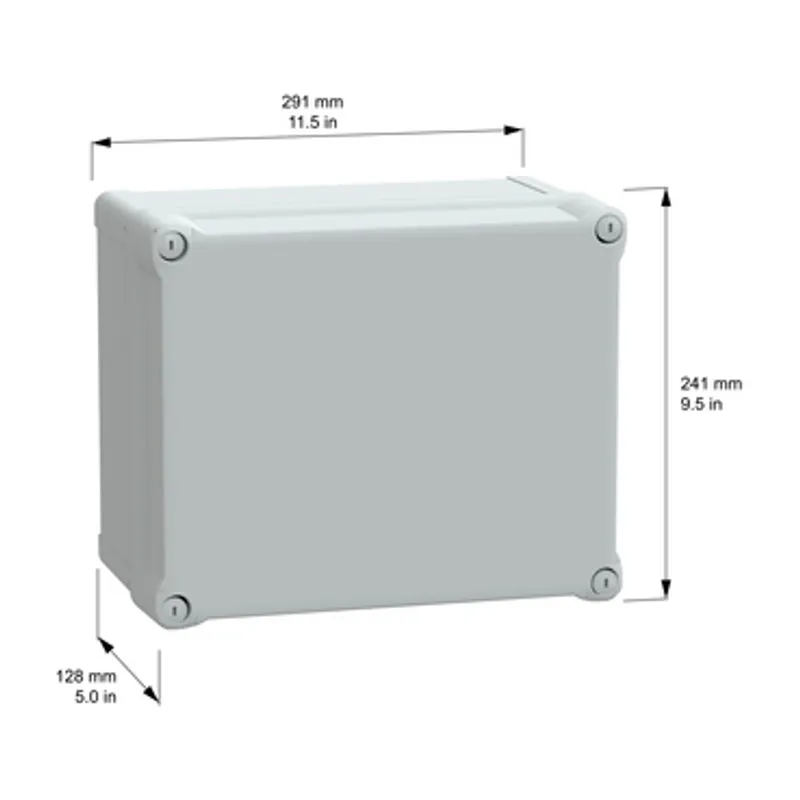

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 291 mm, 241 mm, and 128 mm, respectively The internal dimensions of the box are 275 mm x 225 mm x 120 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a high plain cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 291 mm |
| Width | 241 mm |
| Depth | 128 mm |
| Internal height | 275 mm |
| Internal width | 225 mm |
| Internal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | High plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 1.1 kg |
Packaging
| Package 1 | 1 PCE, 31.000 cm × 25.000 cm × 14.000 cm (L × W × H), 1.044 kg |
| Package 2 | 6 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 7.148 kg |
| Package 3 | 72 P12, 120.000 cm × 80.000 cm × 134.500 cm (L × W × H), 94.500 kg |
