Schneider Electric NSYTBS241910
ABS box IP66 IK07 RAL7035 Int.H225W194D100 Ext.H241W194D107 Opaque cover H20
- MPN
- NSYTBS241910
- EAN
- 3606480165337
- Category
- Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYTBS241910?

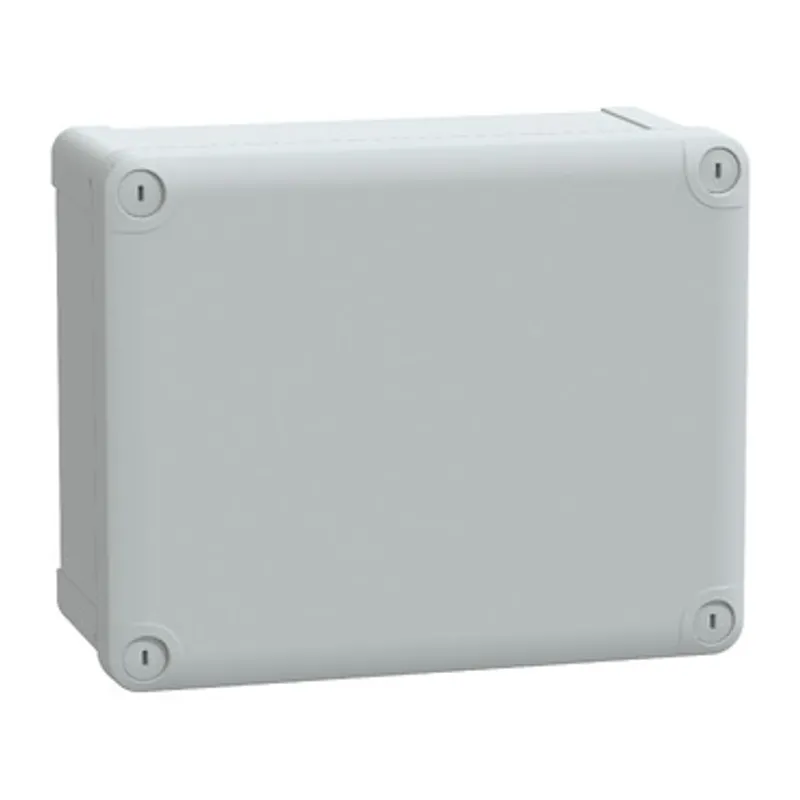

"This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications" "The box has a height, width, and depth of 241 mm, 194 mm, and 107 mm, respectively" "The internal dimensions of the box are 225 mm x 175 mm x 100 mm" "The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures" "The box comes in a grey (RAL 7035) color" "It has a low plain cover that is fixed with captive flat screws" "The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance" "The box has a net weight of 0,7 kg"
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |

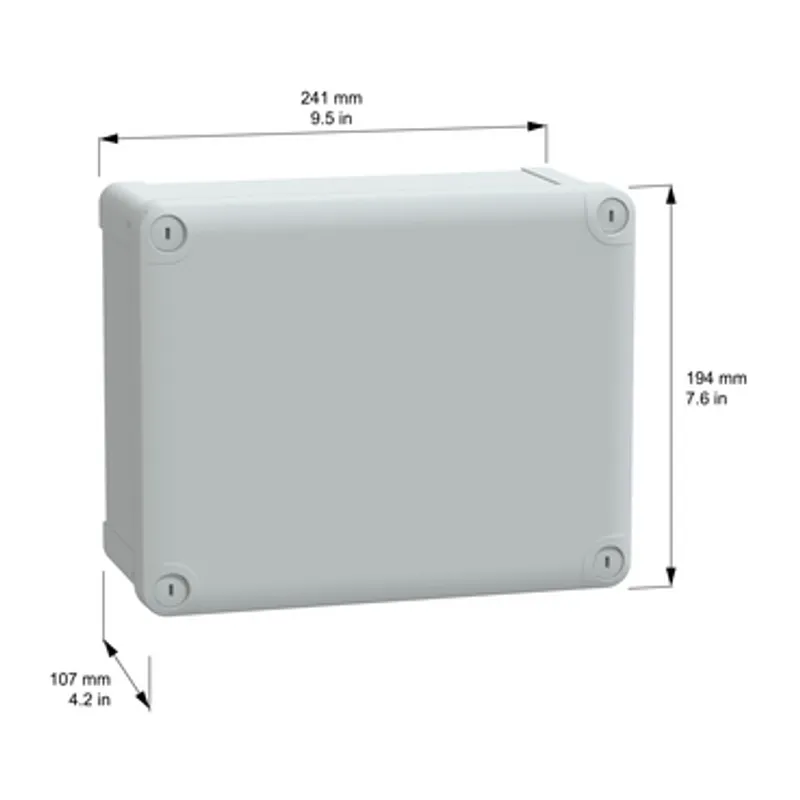

| Height | 241 mm |
| Width | 194 mm |
| Depth | 107 mm |
| Internal height | 225 mm |
| Internal width | 175 mm |
| Internal depth | 100 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |

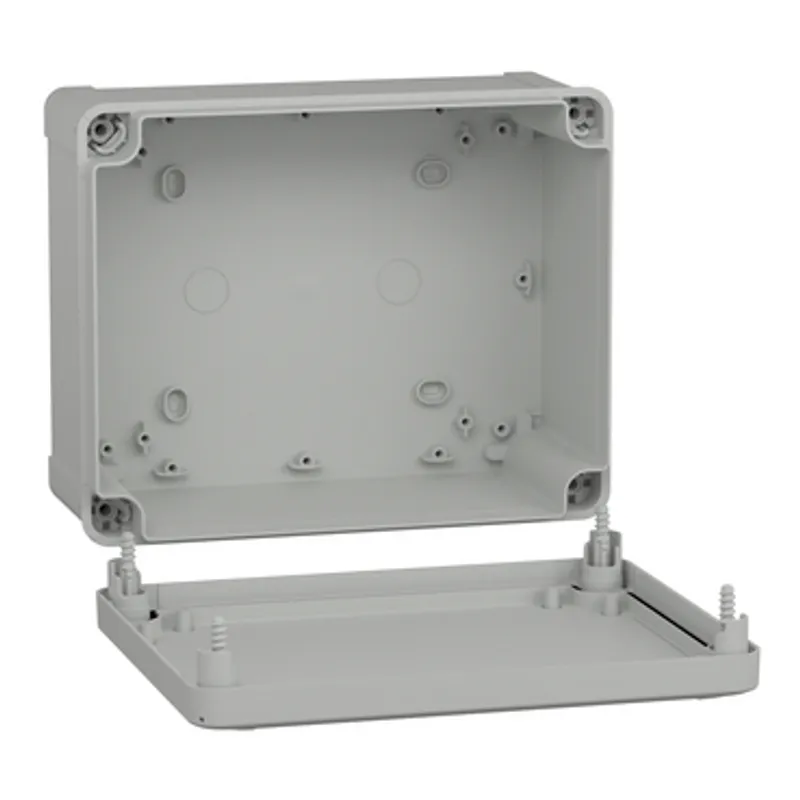

| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.7 kg |
Packaging
| Package 1 | 1 PCE, 25.500 cm × 20.500 cm × 12.000 cm (L × W × H), 687.000 g |
| Package 2 | 9 CAR, 60.000 cm × 40.500 cm × 40.000 cm (L × W × H), 7.488 kg |
| Package 3 | 108 P12, 120.000 cm × 80.000 cm × 134.500 cm (L × W × H), 94.500 kg |
