Schneider Electric NSYTBS19128T
ABS industrial box, PanelSeT TBS, 121x87x192mm, int. 105x80x175mm, low transparent cover, IP66, IK07, RAL 7035
- MPN
- NSYTBS19128T
- EAN
- 3606480165443
- Category
- Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYTBS19128T?

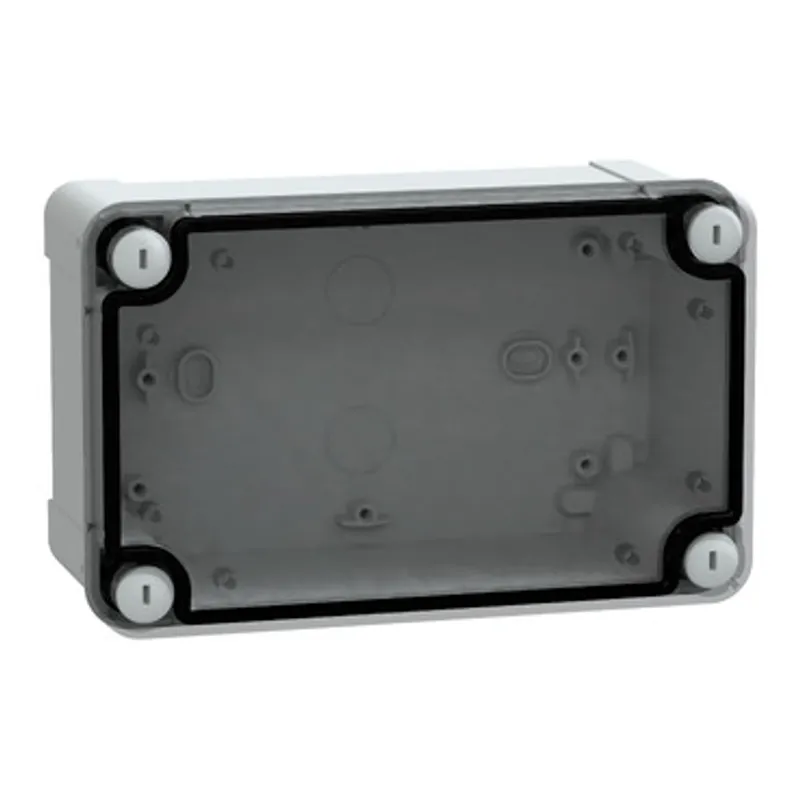

Thalassa TBS industrial ABS box with transparent cover H20. Int is 175 x 105 x 80 mm. Ext is 191 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |

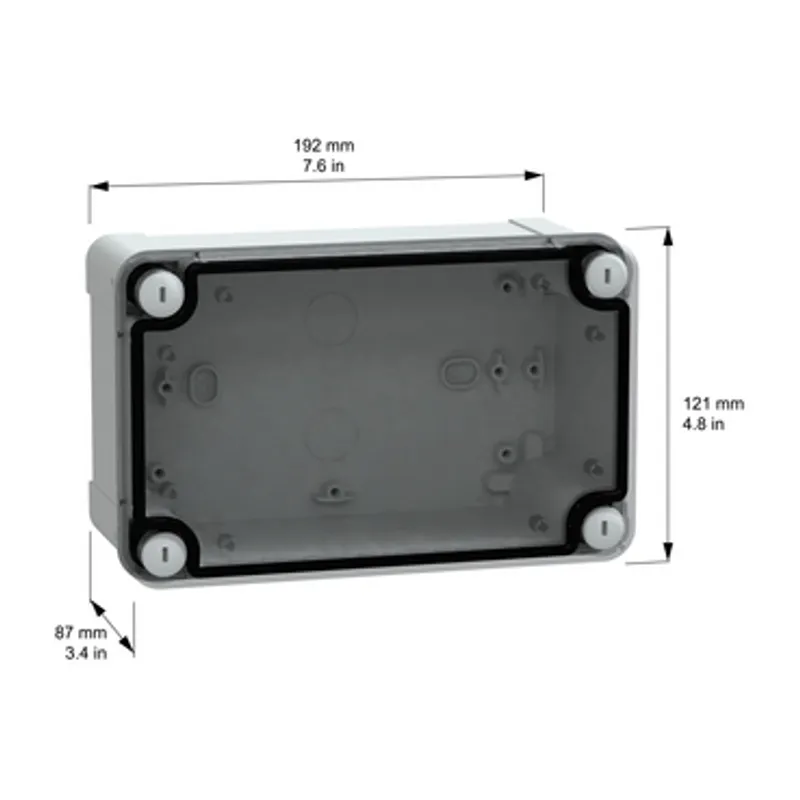

| Height | 192 mm |
| Width | 121 mm |
| Depth | 87 mm |
| Internal height | 175 mm |
| Internal width | 105 mm |
| Internal depth | 80 mm |
| Enclosure mounting | Wall mounted |

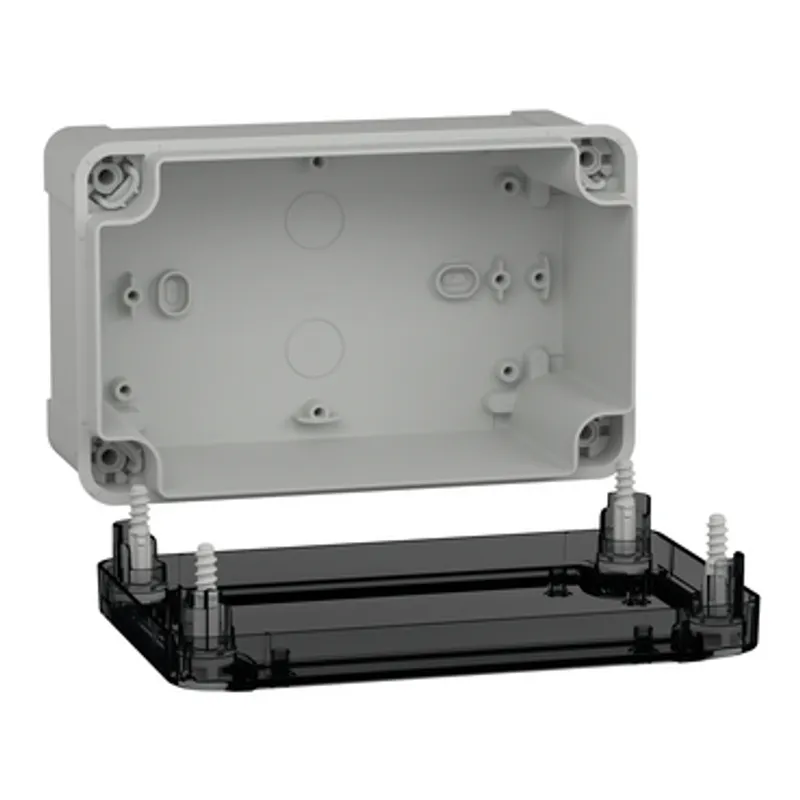

| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 2 |
| Body type | One piece moulded |
| Type of front cover | Low transparent cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035), Transparent |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.38 kg |
Packaging
| Package 1 | 1 PCE, 19.200 cm × 12.100 cm × 8.700 cm (L × W × H), 370.000 g |
| Package 2 | 28 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 11.360 kg |
| Package 3 | 336 P12, 120.000 cm × 80.000 cm × 135.000 cm (L × W × H), 149.000 kg |
