Schneider Electric NSYSVR808

PanelSeT SF ventilated roof - 800x800 mm

MPN: NSYSVR808
EAN: 3606485133812
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSVR808?

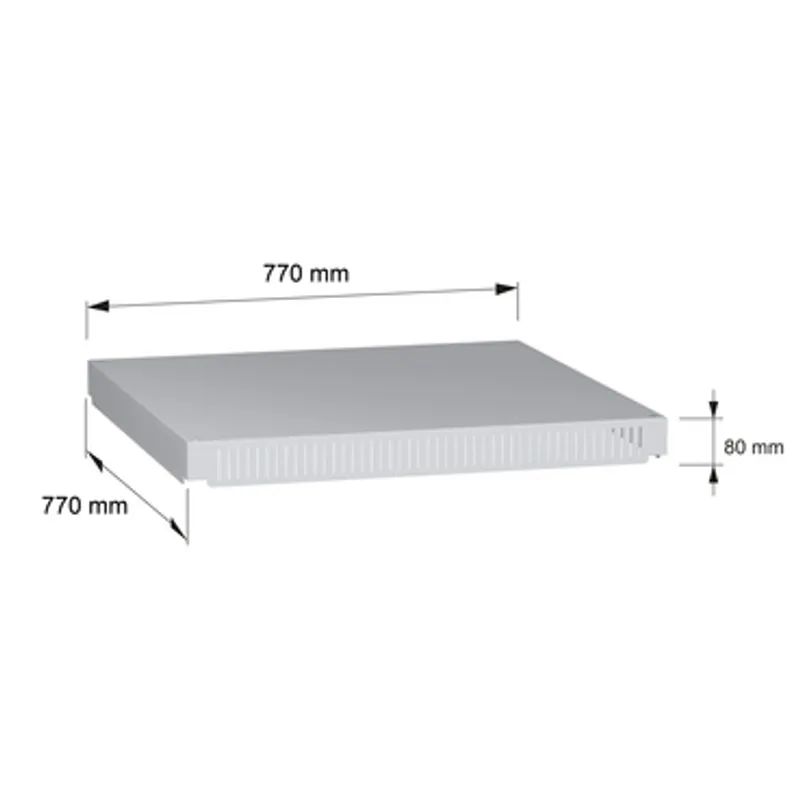

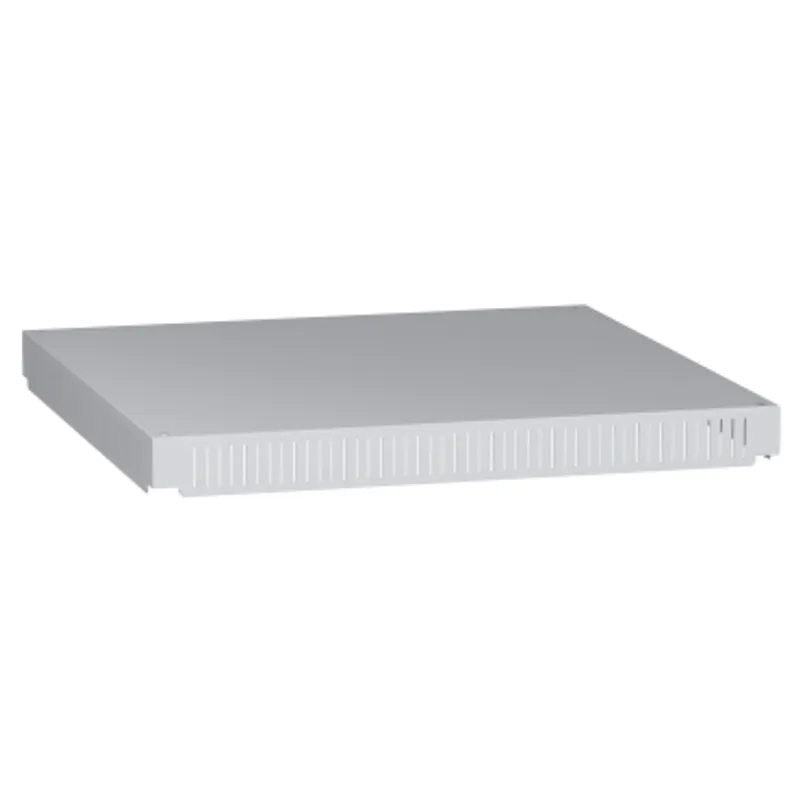

Ventilated roof made from grey epoxy-polyester powder coated steel and plastic (RAL 7035) for PanelSeT SF suitable enclosure The product is to be used in electronic and multi-purpose applications The real width is 770mm and nominal width is 800mm The height is 72mm The real depth is 770mm and nominal depth is 800mm Fixed on top of enclosure by elevators (screw type M12) The kit is made up of 4 elevatorss and 1 roof Ingress protection rating is IP30 conforming to IEC 60529

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Ventilated roof
Device application	Electronic application, Multi-purpose
Range compatibility	PanelSeT PanelSeT SF suitable enclosure
Device composition	4 elevator, 1 roof
Quantity per set	Set of 1
Material	Steel, Plastic
Colour	Grey (RAL 7035), Grey
Surface finish	Epoxy-polyester powder
Fixing mode	By elevators - screw type M12 - roof fixing point location
Height	72 mm
Width	Real: 770 mm, Nominal: 800 mm
Depth	Real : 770 mm, Nominal : 800 mm
IP degree of protection	IP30 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 78.500 cm × 77.500 cm × 8.000 cm (L × W × H), 13.000 kg
Package 2	10 P12, 120.000 cm × 80.000 cm × 98.000 cm (L × W × H), 141.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSVR808PDF

NSYSVR808: frequently asked questions

When can NSYSVR808 be shipped?

NSYSVR808 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSVR808 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSVR808 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSVR808, subject to availability and destination.
