Schneider Electric NSYSMP2D6
Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D600mm
- MPN
- NSYSMP2D6
- EAN
- 3606485132105
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMP2D6?

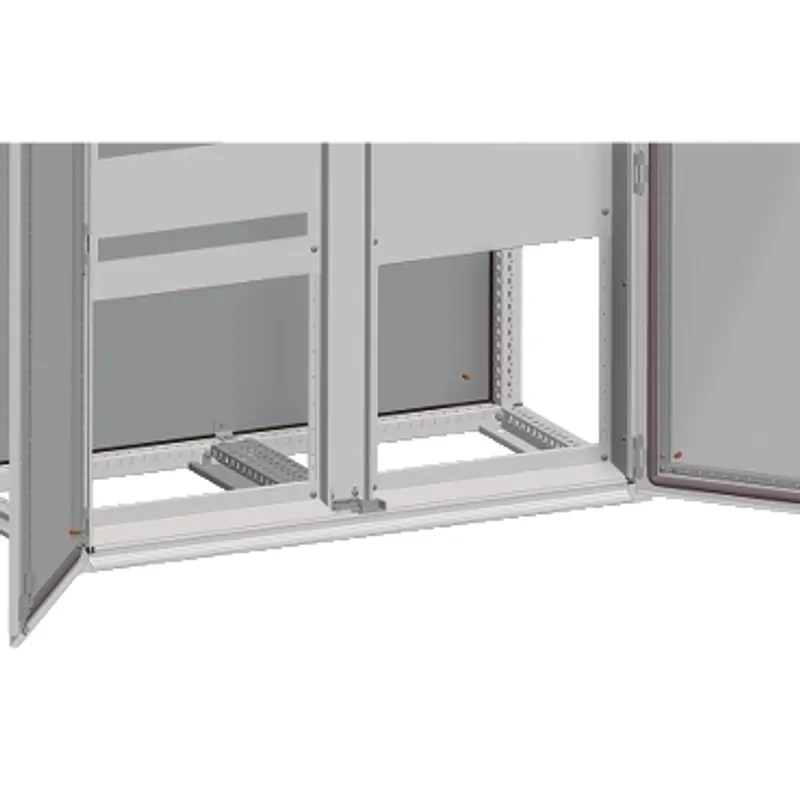

This is a kit for adapting two-door enclosures. It allows the installation of two mounting plates as if in two independent enclosures. The product is suitable with PanelSeT SFN and PanelSeT SF electrical enclosures. Compatible for enclosures with widths of 1200 and 1600 mm. The product is made of zinc-coated steel. The depth is 600mm. The set includes 1 cable gland plate support, 2 cross rails, 2 brackets and fixing elements.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Adaptation kit |
| Range compatibility | PanelSeT SF |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - D: 600 mm |
| Mounting location | Bottom and top centre of enclosure |
| Product destination | 2 mounting plates in 2-door enclosures, Modular double-chassis coupling set |
| Device composition | 1 cable galnd plate support, 2 90 mm cross rails, 2 bracket for central fixing of roof, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Height | 27 mm |
| Width | 90 mm |
| Depth | 507 mm |
Packaging
| Package 1 | 1 PCE, 53.000 cm × 19.500 cm × 7.000 cm (L × W × H), 3.626 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 194.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMP2D6: frequently asked questions
When can NSYSMP2D6 be shipped?
NSYSMP2D6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMP2D6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMP2D6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMP2D6, subject to availability and destination.
