Schneider Electric NSYSIMP18

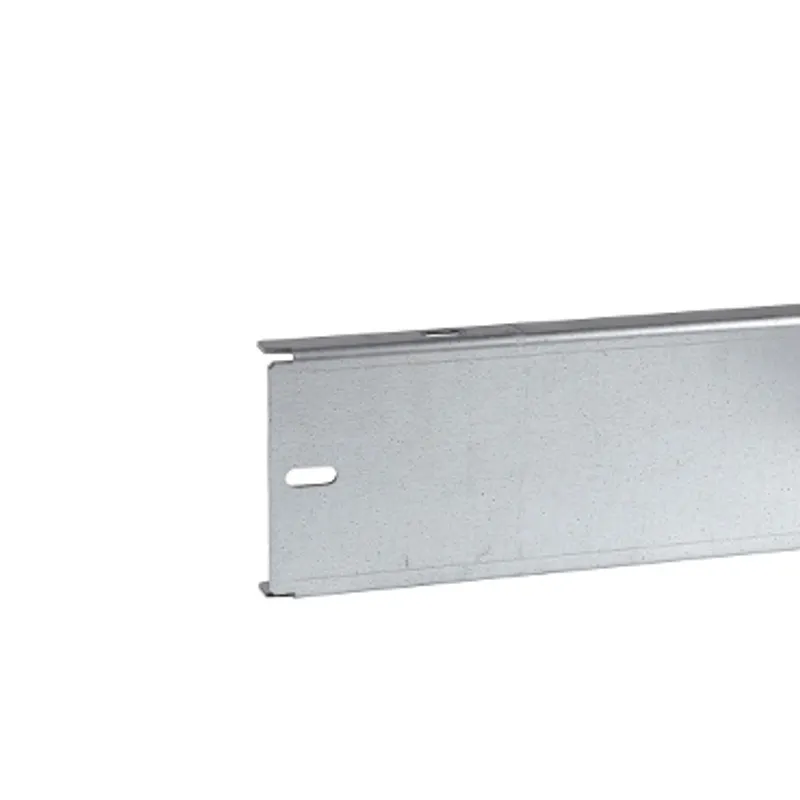

Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1800mm , galvanized steel
- MPN
- NSYSIMP18
- EAN
- 3606485132006
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSIMP18?
Intermediate mounting plate for PanelSeT SFN electrical enclosures with nominal height of 1800 mm. It is a multi purpose accessory to mounting other components. It provides a continuous mounting surface by placing it between two enclosures when coupled. It is adjustable in depth with a pitch of 25 mm. It is made of galvanized steel.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Intermediate plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SFX PanelSeT SFX |
| Device composition | 1 intermediate mounting plate, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element |
| Height | Nominal: 1800 mm, Real: 1696 mm |
| Width | Real: 98 mm |
Packaging
| Package 1 | 1 PCE, 2.500 cm × 10.000 cm × 171.000 cm (L × W × H), 3.720 kg |
| Package 2 | 45 P2M, 120.000 cm × 200.000 cm × 36.000 cm (L × W × H), 199.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSIMP18: frequently asked questions
When can NSYSIMP18 be shipped?
NSYSIMP18 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSIMP18 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSIMP18 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSIMP18, subject to availability and destination.
