Schneider Electric NSYSFHF20860

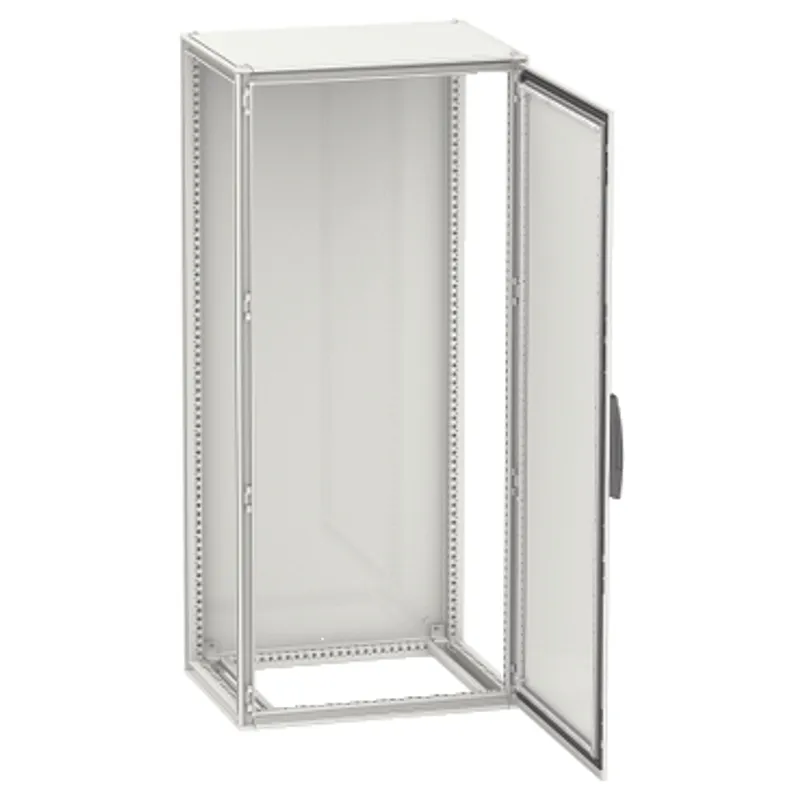

Spacial SFHF - electromagnetic protected enclosure - H=2000 x W=800 x D=600 mm

MPN
NSYSFHF20860
EAN
3606480370021
Category
PanelSet SF
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYSFHF20860 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSFHF20860?

Schneider Electric Spacial SFHF - electromagnetic protected enclosure - H=2000 x W=800 x D=600 mm, manufacturer part number NSYSFHF20860. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Extended rangePanelSeT SFHF
Product or component typeSuitable enclosure
enclosure typeElectromagnetic protected
Enclosure nominal height2000 mm
Enclosure nominal width800 mm
Enclosure nominal depth600 mm
Enclosure mountingFloor-standing
Device composition2 sliding rails, 4 mounting plate bracket, 1 structure, 1 door, 1 locking system with handle: door, 1 rear panel, 1 roof, 4 adaptor upright
Structure typeVertical uprights joined with top and bottom frames, Formed from a single section, Panels and doors built into the structure, Perforated structure with a pitch of 25 mm
Door opening sideReversible (120 °)
Door typePlain front
Mounting plate descriptionWithout mounting plate
Type of gland plateWithout gland plate
Lock type4 points lock, handle with 5 mm double bar insert front door
Number of doorsFront: 1 door(s)
Accessibility for operationFront, Sides of enclosure, Rear
Removable partsDoor by screws hinge, Rear panel by screws, Roof by screws, Mounting plate bracket by screws, Sliding rail by screws
MaterialFrame: galvanised steel, Uprights: galvanised steel, Hinge: zamak, Handle: polyamide 6 with 30 % fibre glass, Panels: aluzinc, Door: aluzinc
Surface finishEpoxy-polyester powder
ColourEnclosure: grey (RAL 7035), Handle: black (RAL 9005)
StandardsIEC 62208, EMC/EN/IEC 61547
IP degree of protectionIP55 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYSFHF20860: frequently asked questions

Can I still buy the NSYSFHF20860 now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYSFHF20860, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYSFHF20860 be shipped?

NSYSFHF20860 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSFHF20860 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSFHF20860 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFHF20860, subject to availability and destination.
