Schneider Electric NSYSFD20162D

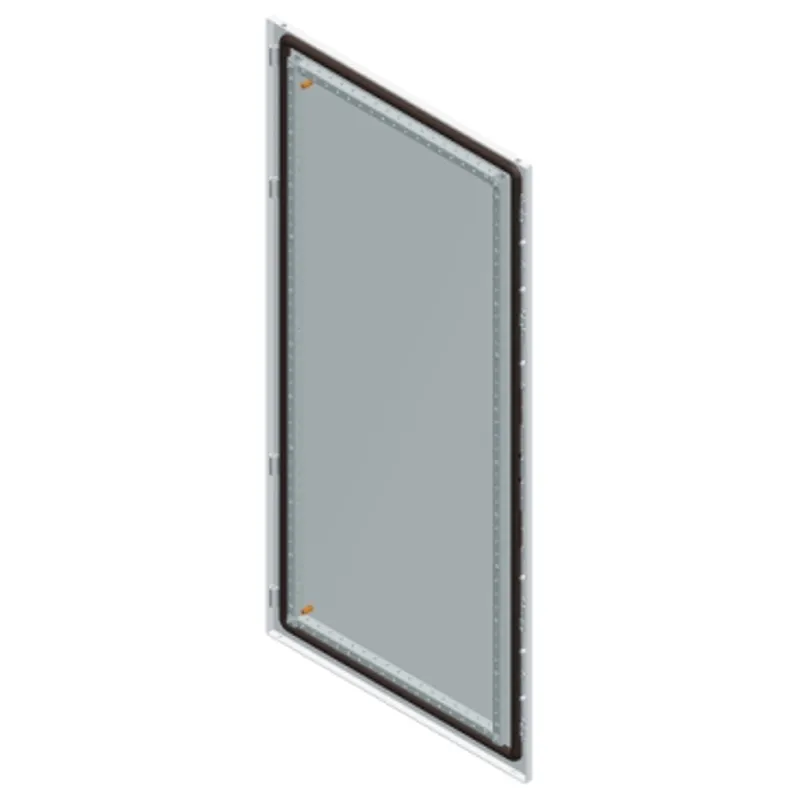

PanelSeT SF double plain doors - 2000x1600 mm
- MPN
- NSYSFD20162D
- EAN
- 3606485119533
- Category
- PanelSet SF
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSFD20162D?
External plain door for Spacial SF The product is to be mounted on front of the enclosure The nominal width is 1600mm The nominal height is 2000mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP55 Hinges left or right (120 ° opening angle)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 blocking system, 2 reinforcement frame, 8 hinges |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 2000 mm |
| Width | Nominal: 1600 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 200.500 cm × 85.000 cm × 10.000 cm (L × W × H), 60.600 kg |
| Package 2 | 5 PAL, 202.000 cm × 120.000 cm × 60.000 cm (L × W × H), 329.000 kg |
