Schneider Electric NSYPMM105

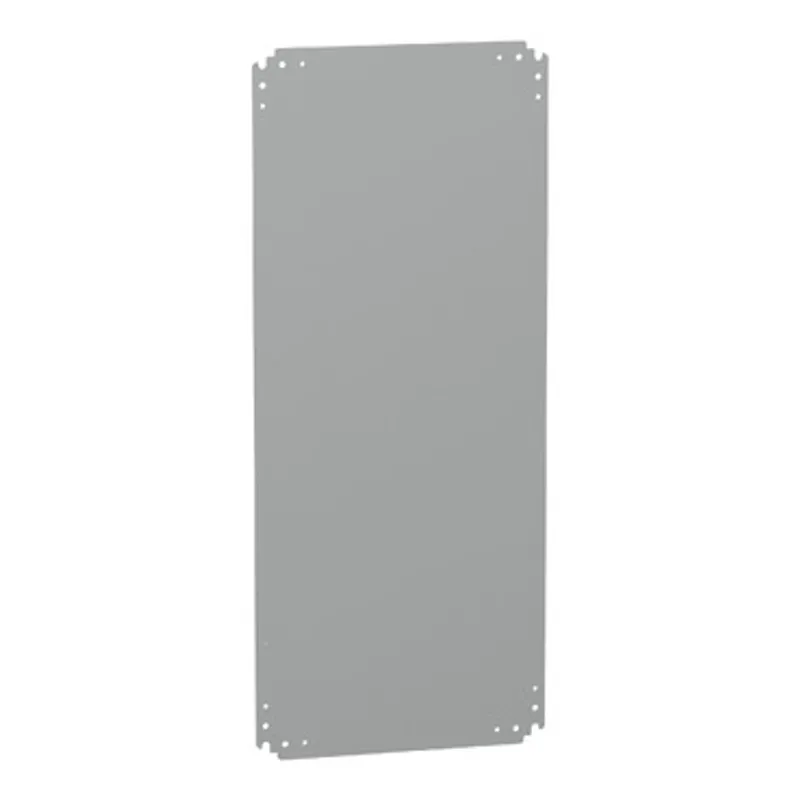

Metallic mounting plate for PLA enclosure H1000xW500mm

MPN
NSYPMM105
EAN
3606480193835
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPMM105?

Schneider Electric Metallic mounting plate for PLA enclosure H1000xW500mm, manufacturer part number NSYPMM105. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack inserts, Step slide
Mounting plate descriptionPlain
Range compatibilityPanelSeT PLA, PanelSeT PHD
Device composition1 mounting plate
MaterialGalvanised steel
Fixing modeBy screws - screw type M8 - on back inserts location
Permanent permissible load150 kg

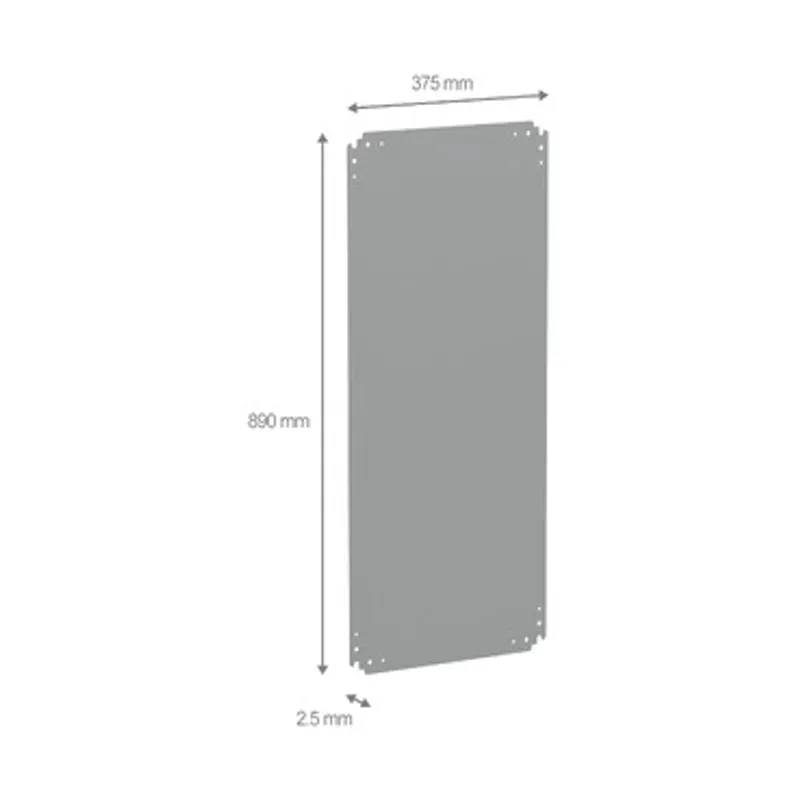

HeightNominal: 1000 mm, Real: 890 mm
WidthNominal: 500 mm, Real: 375 mm
DepthReal : 125 mm
thickness2.5 mm

Packaging

Package 11 PCE, 89.000 cm × 38.000 cm × 0.300 cm (L × W × H), 6.294 kg
Package 2100 PAM, 120.000 cm × 100.000 cm × 30.000 cm (L × W × H), 642.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPMM105: frequently asked questions

When can NSYPMM105 be shipped?

NSYPMM105 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPMM105 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPMM105 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMM105, subject to availability and destination.
