Schneider Electric NSYPLM68G

Landscape (Horizontal) enclosure polyester, PanelSeT PLM, IP66 H636xW847xD300mm

MPN
NSYPLM68G
EAN
3606481085245
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

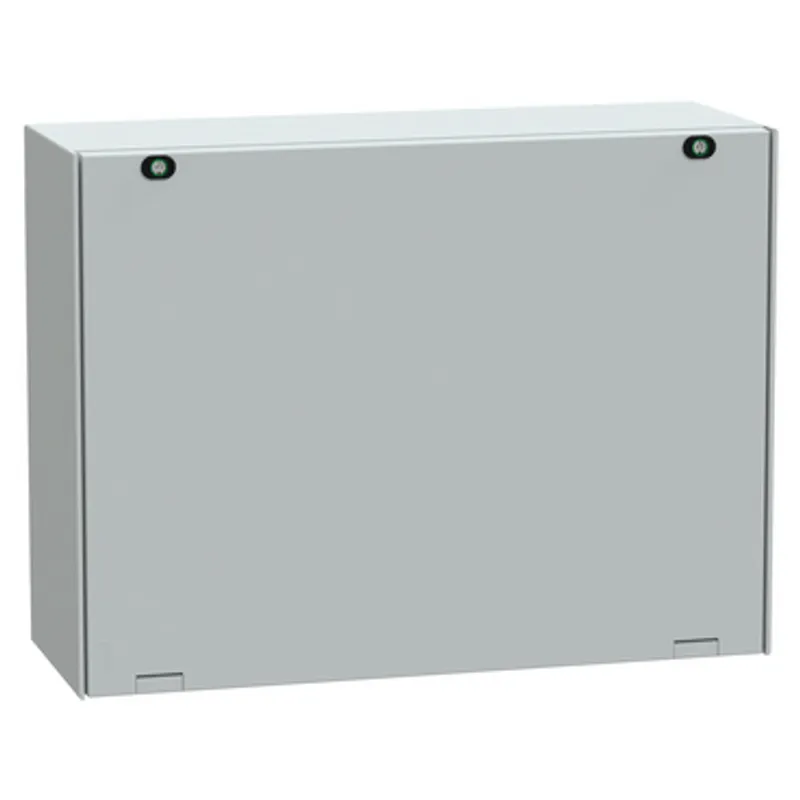

What is the Schneider Electric NSYPLM68G?

This PanelSeT PLM landscape (formerly PanelSeT PLM) enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). It is composed of body, door, lock. Featuring a removable door by cut hinges. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The dimensions are (W) 847 mm x (H) 636 mm x (D) 300 mm. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is suitable to build array combiner boxes. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. Environmental compliant

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure

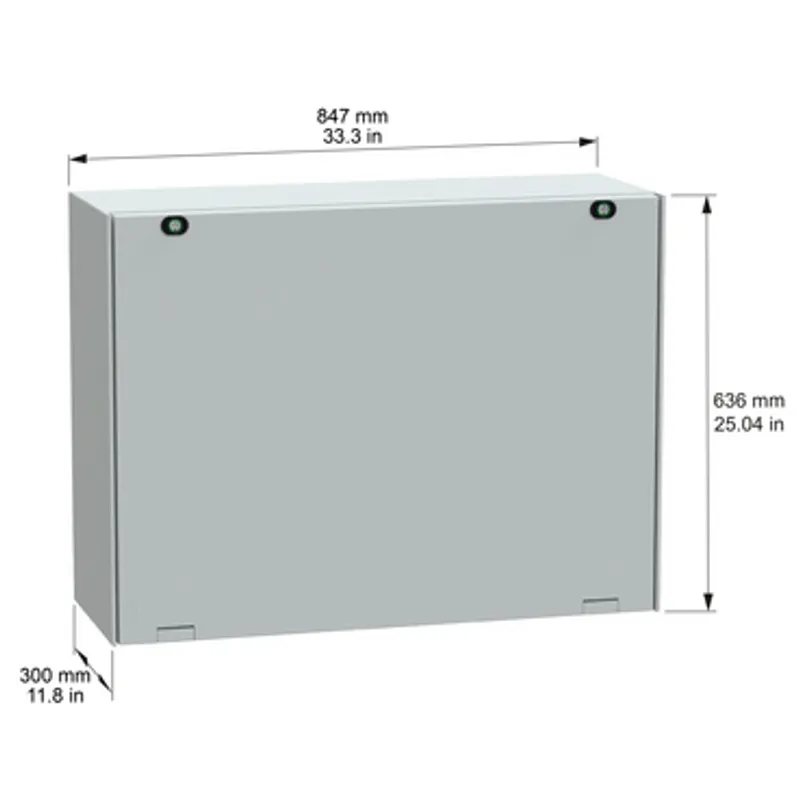

Nominal height636 mm
Nominal width847 mm
Nominal depth300 mm
Enclosure mountingWall mounted
Installation directionHorizontal
Device composition1 body, 1 door, 2 lock
Body typeBuilt-in canopy, on lateral side, One piece moulded with notches in the rear
Door typePlain
Door opening sideDown
Lock type3 mm double-bar lock
Number of locks2
Mounting plate descriptionWithout mounting plate
Accessibility for operationFront
Removable partsDoor by cut hinges
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsNEMA classification 13, IEC 62208, NEMA classification 4X
Product certificationsUL, BV
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 93.000 cm × 65.500 cm × 33.000 cm (L × W × H), 17.100 kg
Package 28 PAM, 120.000 cm × 100.000 cm × 199.000 cm (L × W × H), 148.800 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLM68G: frequently asked questions

When can NSYPLM68G be shipped?

NSYPLM68G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM68G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM68G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM68G, subject to availability and destination.
