Wall mounted polyester enclosure, PanelSeT PLM, plain door, 647x436x250mm, IP66, IK10, RAL 7035

Name: Schneider Electric NSYPLM64G – Wall mounted polyester enclosure, PanelSeT PLM, plain door, 647x436x250mm, IP66, IK10, RAL 7035
Brand: Schneider Electric
SKU: NSYPLM64G

MPN: NSYPLM64G · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT PLM
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	9.75 kg

Shipping & availability

When can NSYPLM64G be shipped?

NSYPLM64G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM64G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM64G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM64G, subject to availability and destination.

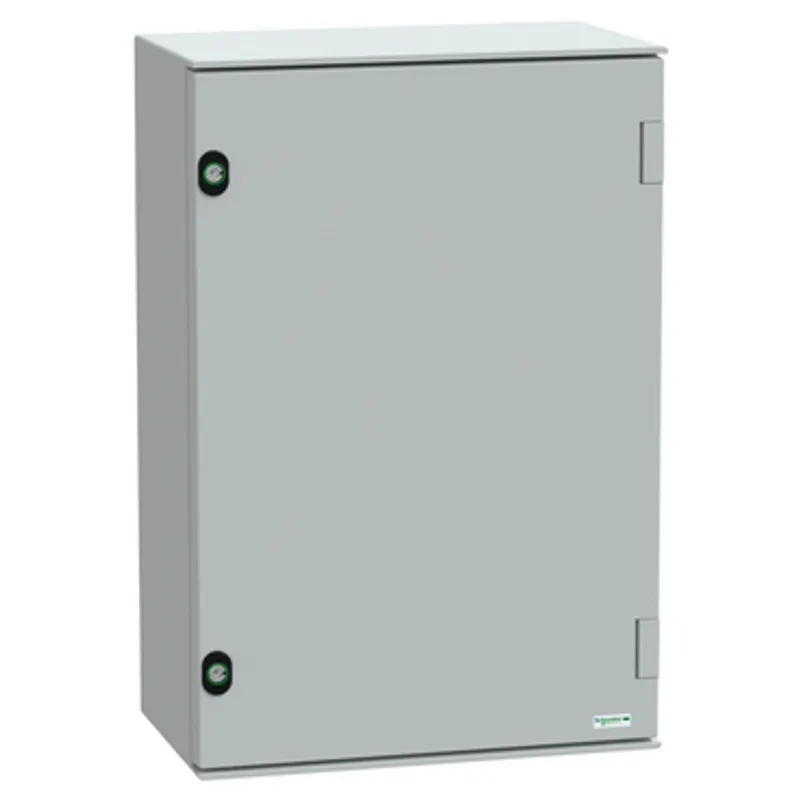

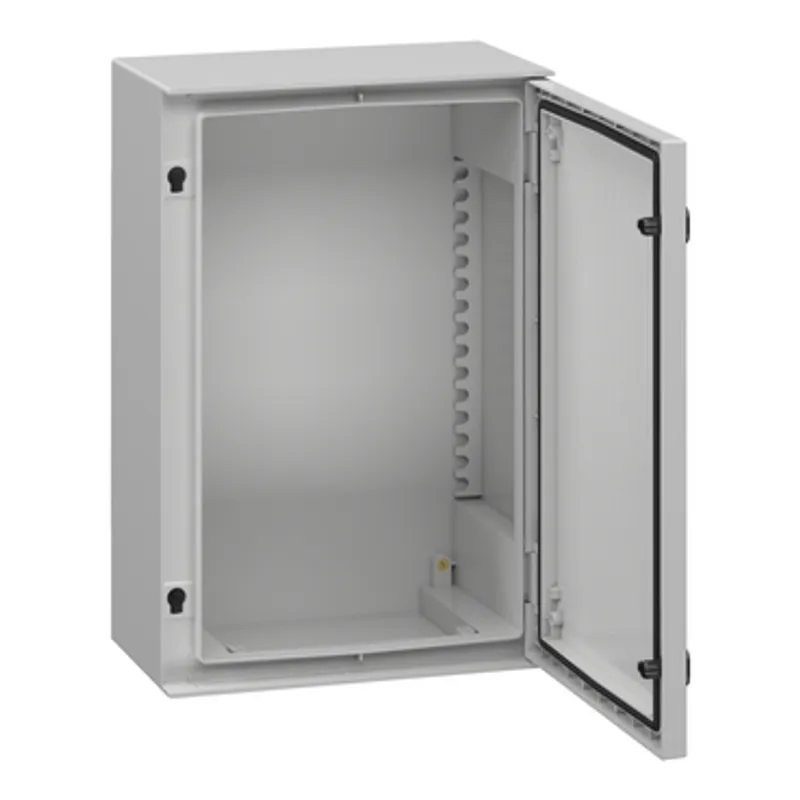

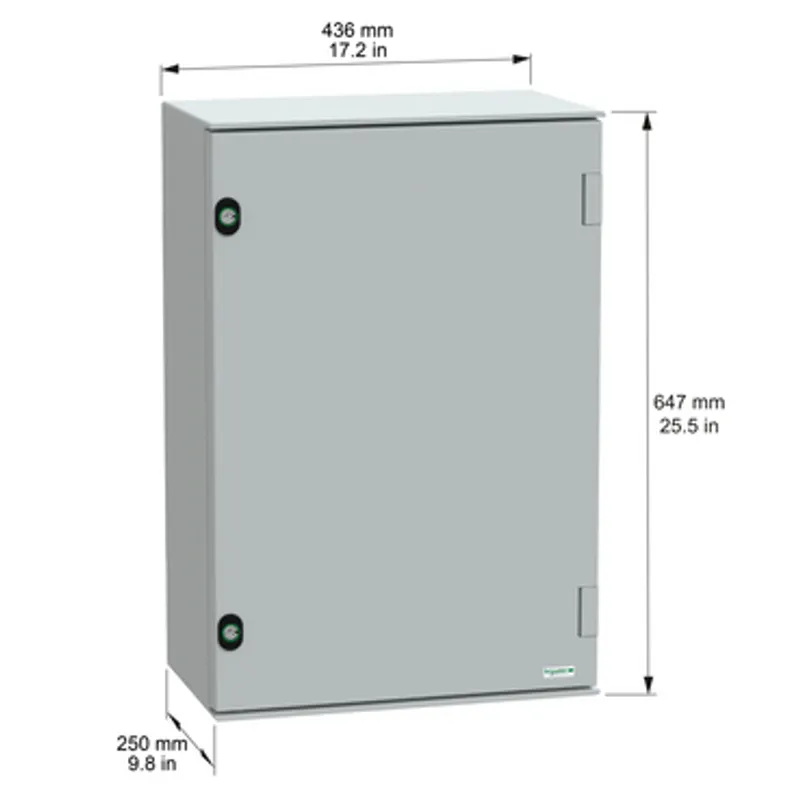

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 647 mm, 436 mm, and 250 mm, respectively It is made of polyester reinforced with fibreglass, which provides durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and two locks The door is plain, allowing easy visibility of the equipment inside The door can be opened from the front and has two 3 mm double-bar locks The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance

Specifications

Range	PanelSeT
Device short name	PLM
Enclosure type	Multi-purpose
Category	Compact enclosure
Nominal height	647 mm
Nominal width	436 mm
Nominal depth	250 mm
Enclosure mounting	Wall mounted
Device composition	1 body, 1 door, 2 lock
Door type	Plain
Lock type	3 mm double-bar lock
Number of locks	2
Mounting plate description	Without mounting plate
Accessibility for operation	Front
Removable parts	Door by hinges
Material	Polyester reinforced with fibreglass
Colour	Grey (RAL 7035)
Standards	NEMA classification 13, NEMA classification 4X, IEC 62208
Product certifications	UL
Electrical insulation class	Class II
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Fire resistance	960 °C conforming to IEC 62208
Ambient air temperature for operation	-40…80 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	28.500 cm
Package 1 Width	46.000 cm
Package 1 Length	71.500 cm
Package 1 Weight	9.750 kg
Unit Type of Package 2	PAM
Number of Units in Package 2	21
Package 2 Height	204.000 cm
Package 2 Width	100.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	220.000 kg
Warranty	18 months
