Schneider Electric NSYPLAT573G

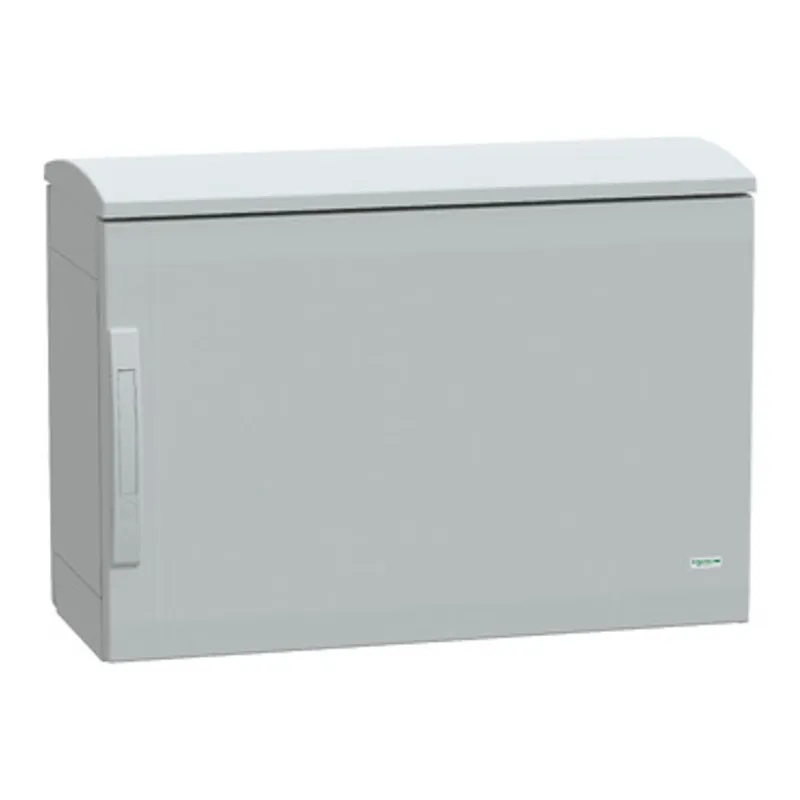

Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 500x750x320mm, IP44, IK10

MPN
NSYPLAT573G
EAN
3606480775451
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPLAT573G (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAT573G?

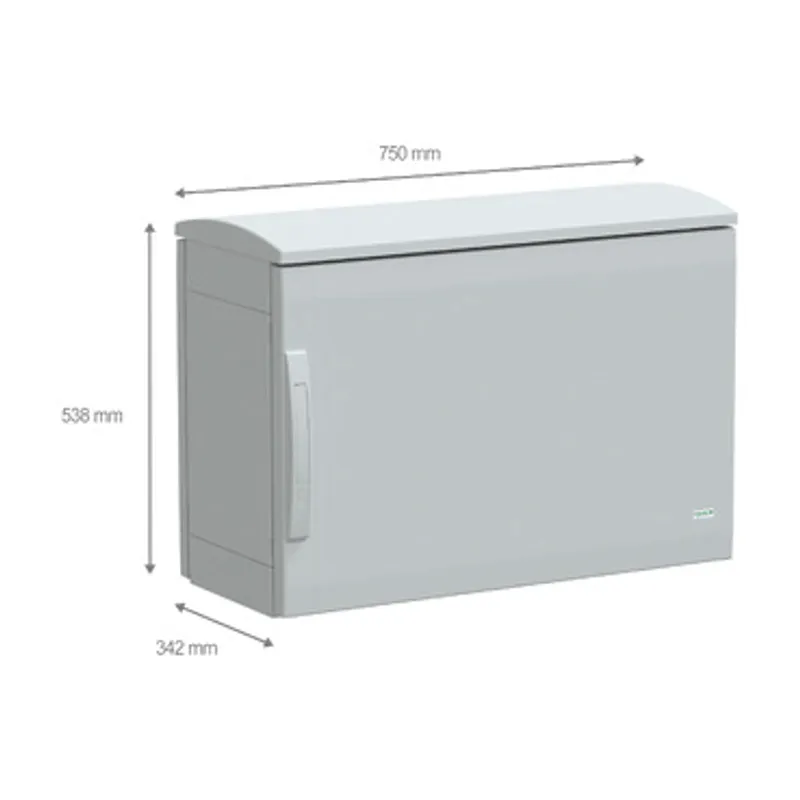

This PLAT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 500mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The front door is designed to open up to 120° from either the right or left side, and features a two-point handle lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements The enclosure is fire-resistant up to 960°C in accordance with the IEC 62208 standard, and has an IK10 rating according to IEC 62262, offering excellent protection against impacts It is rated IP44 (IEC 60529) and provides protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAT
Nominal height500 mm
Nominal width750 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy
Body typeOpen top and sealed bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type2 points handle lock, 5 mm double-bar
Accessibility for operationTop, Front, Rear
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 77.500 cm × 55.500 cm × 36.000 cm (L × W × H), 19.200 kg
Package 29 PAM, 120.000 cm × 100.000 cm × 181.000 cm (L × W × H), 187.000 kg
