Schneider Electric NSYPLAT1573G

Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 1500x750x320mm, IP44, IK10

MPN
NSYPLAT1573G
EAN
3606480775376
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAT1573G?

Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 1500x750x320mm, IP44, IK10, manufacturer part number NSYPLAT1573G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAT

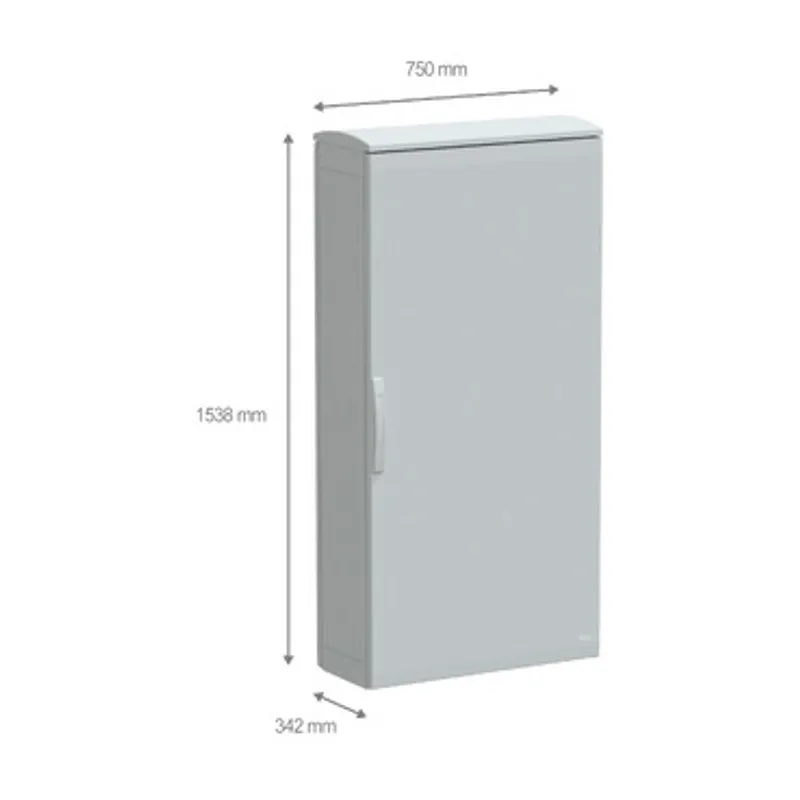

Nominal height1500 mm
Nominal width750 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy
Body typeOpen top and sealed bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationTop, Front, Rear
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 155.000 cm × 78.500 cm × 35.500 cm (L × W × H), 42.000 kg
Package 23 PAM, 120.000 cm × 100.000 cm × 168.000 cm (L × W × H), 141.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAT1573G: frequently asked questions

When can NSYPLAT1573G be shipped?

NSYPLAT1573G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAT1573G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAT1573G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAT1573G, subject to availability and destination.
