Schneider Electric NSYPLAT12103G

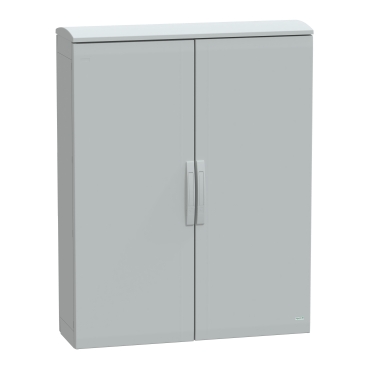

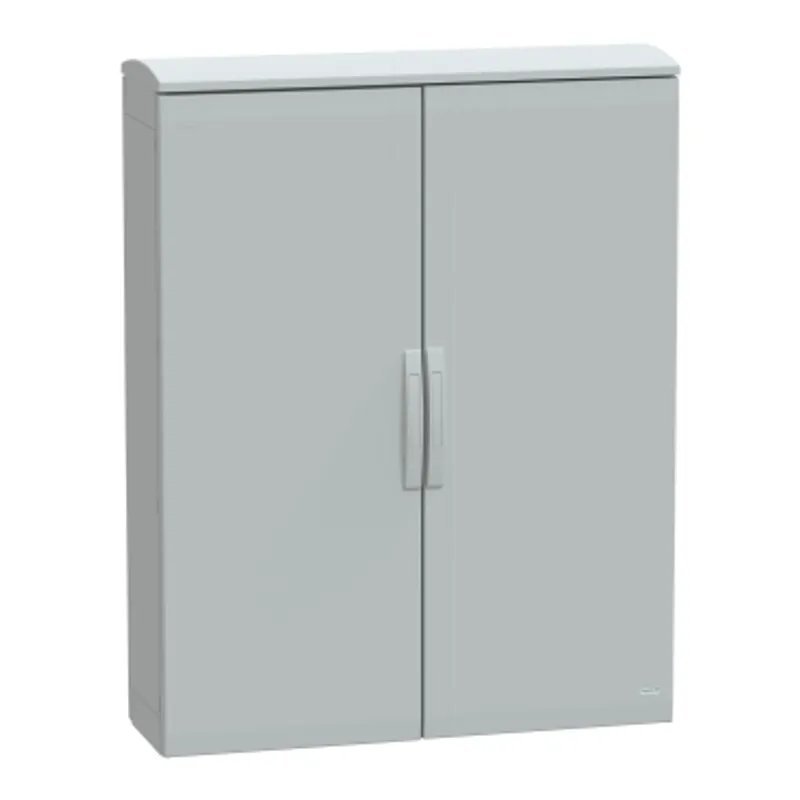

Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 1250x1000x320mm, IP44, IK10

MPN
NSYPLAT12103G
EAN
3606480775239
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAT12103G?

"This PLAT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has nominal dimensions of 1250mm in height, 1000mm in width, and 320mm in depth" "The enclosure is made of polyester reinforced with fiberglass, providing excellent durability and resistance to harsh environments, such as outdoor and industrial settings" "The enclosure is available in grey (RAL 7035) and consists of two side parts, two plain front doors, two rear panels, one canopy, and one bottom part" "The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a handle that has a 5mm double-bar insert" "The doors, rear panels, and canopy are also removable for maintenance purposes" "The enclosure offers strong protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP44 (IEC 60529) with the ventilated canopy, providing good protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAT
Nominal height1250 mm
Nominal width1000 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy
Body typeOpen top and sealed bottom part assembled with side parts
Door typePlain front
Number of doors2 door(s)
Door opening sideRight and left (120 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationRear, Front, Top
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 129.000 cm × 102.000 cm × 38.000 cm (L × W × H), 51.330 kg
Package 23 PAM, 120.000 cm × 100.000 cm × 140.000 cm (L × W × H), 167.000 kg
