Schneider Electric NSYPLA773G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 750x750x320mm, IP65, IK10
- MPN
- NSYPLA773G
- EAN
- 3606480775116
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

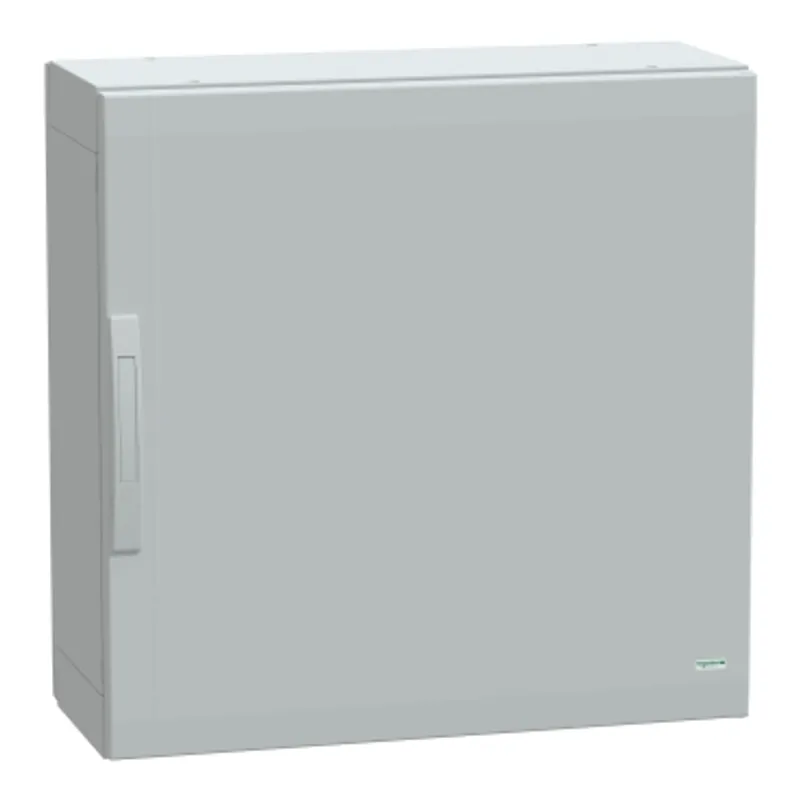

What is the Schneider Electric NSYPLA773G?
This PLA is a versatile, floor-standing enclosure that is suitable for various applications It measures 750mm in height, 750mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) It consists of two side parts, one plain front door, one rear panel, and is completely sealed The door can be opened up to 120° from either the right or left side, and features a two-point lock with a 5mm double-bar insert The door and rear panel are removable for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |

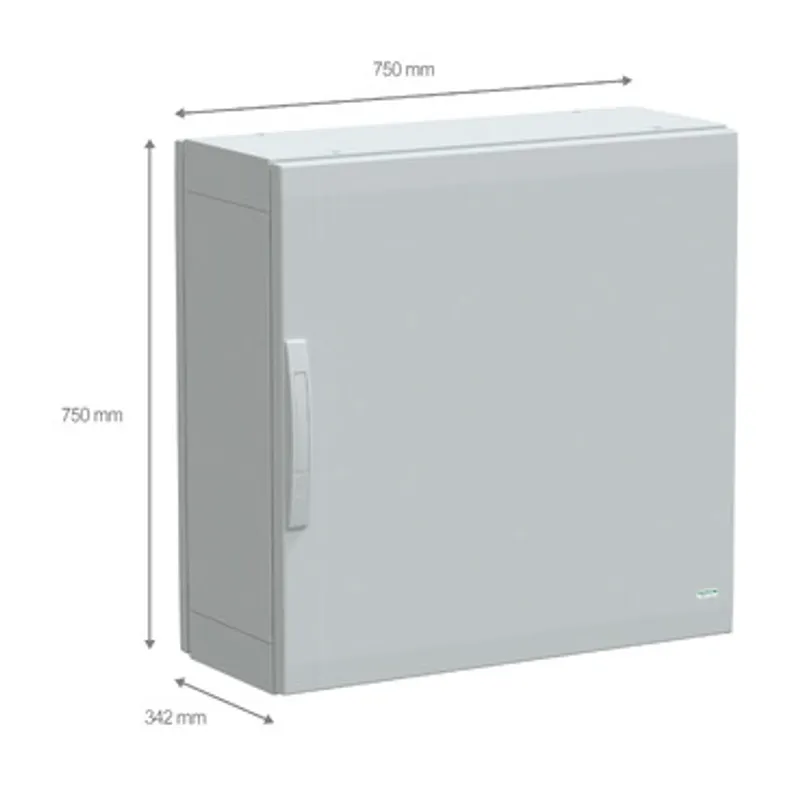

| Nominal height | 750 mm |
| Nominal width | 750 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| NEMA degree of protection | NEMA 3S, NEMA 1, NEMA 2, NEMA 3, NEMA 12, NEMA 5, NEMA 3X, NEMA 3R, NEMA 13 |
| Product certifications | Veritas, UL/cUL listed, DNV Marine |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 78.000 cm × 75.000 cm × 35.000 cm (L × W × H), 21.500 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 166.000 cm (L × W × H), 142.000 kg |
