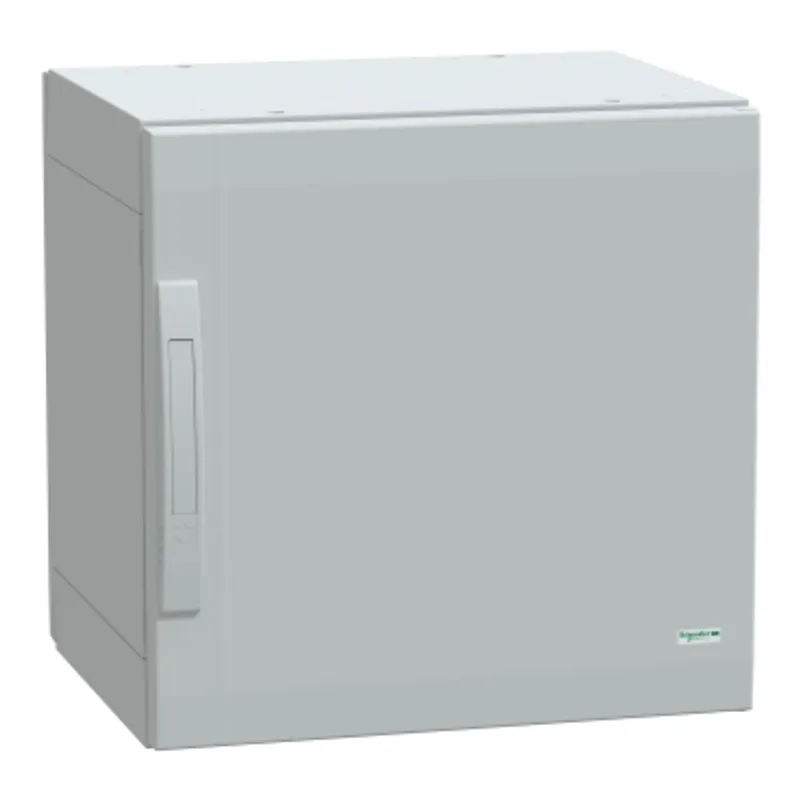

Schneider Electric NSYPLA554G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 500x500x420mm, IP65, IK10
- MPN
- NSYPLA554G
- EAN
- 3606480774935
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA554G?

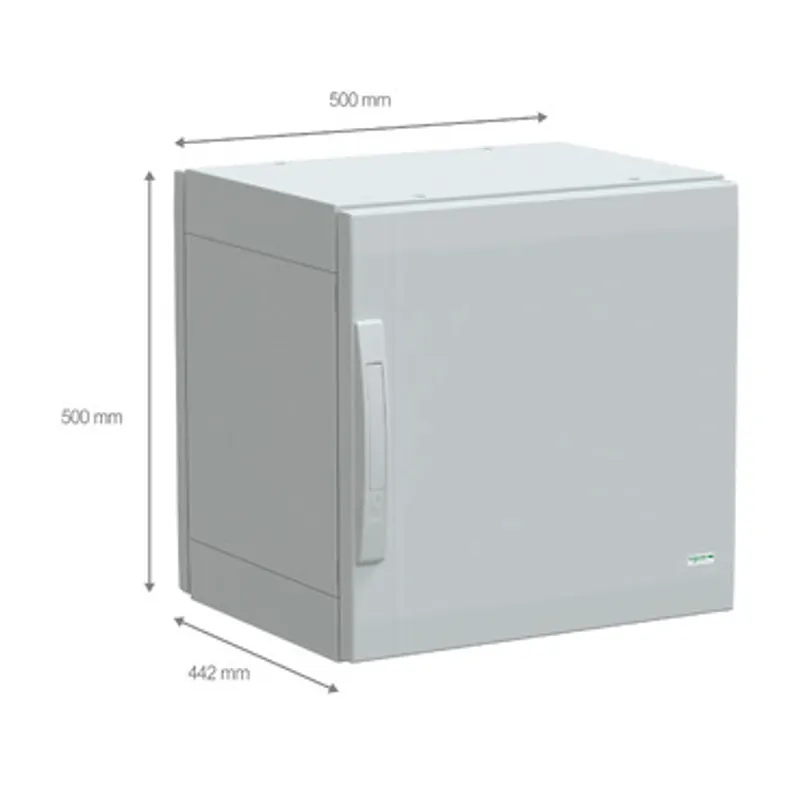

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal size of 500mm in height, 500mm in width, and 420mm in depth The enclosure is made of polyester reinforced with fiberglass for enhanced durability and resistance to harsh environments, both indoor and outdoor It is available in grey (RAL 7035) and consists of a top and bottom part, two side parts, one rear panel, and one door The door can be opened up to 120° from either the right or left side, and is secured with a two-point lock and a 5mm double-bar The door and rear panel can be removed for maintenance purposes The enclosure offers robust protection against fire, impacts, dust, and water
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 500 mm |
| Nominal width | 500 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 5, NEMA 12, NEMA 13, NEMA 3S, NEMA 2, NEMA 3X, NEMA 3R, NEMA 3, NEMA 1 |
| Product certifications | DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 45.000 cm × 52.500 cm × 51.500 cm (L × W × H), 14.800 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 167.000 cm (L × W × H), 191.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPLA554G: frequently asked questions
When can NSYPLA554G be shipped?
NSYPLA554G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLA554G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLA554G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA554G, subject to availability and destination.
