Schneider Electric NSYPLA1576TG
Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1500x750x620mm, IP65, IK08
- MPN
- NSYPLA1576TG
- EAN
- 3606485434490
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA1576TG?
Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1500x750x620mm, IP65, IK08, manufacturer part number NSYPLA1576TG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1500 mm |
| Nominal width | 750 mm |
| Nominal depth | 620 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Transparent front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| NEMA degree of protection | NEMA 13, NEMA 3X, NEMA 3R, NEMA 2, NEMA 3, NEMA 5, NEMA 3S, NEMA 1, NEMA 12 |
| Product certifications | DNV Marine, UL/cUL listed, Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 153.000 cm × 78.000 cm × 65.000 cm (L × W × H), 50.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPLA1576TG: frequently asked questions
When can NSYPLA1576TG be shipped?
NSYPLA1576TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLA1576TG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLA1576TG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA1576TG, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYPLA1574GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1500x750x420mm, IP65, IK10
Schneider Electric
NSYPLA1574TGFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1500x750x420mm, IP65, IK08
Schneider Electric
NSYPLA1576GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1500x750x620mm, IP65, IK10
Schneider Electric

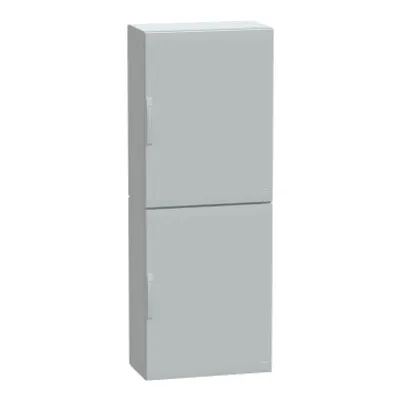

NSYPLA2074GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 2000x750x420mm, IP65, IK10
