Schneider Electric NSYPLA15124G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1500x1250x420mm, IP65, IK10
- MPN
- NSYPLA15124G
- EAN
- 3606480774737
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

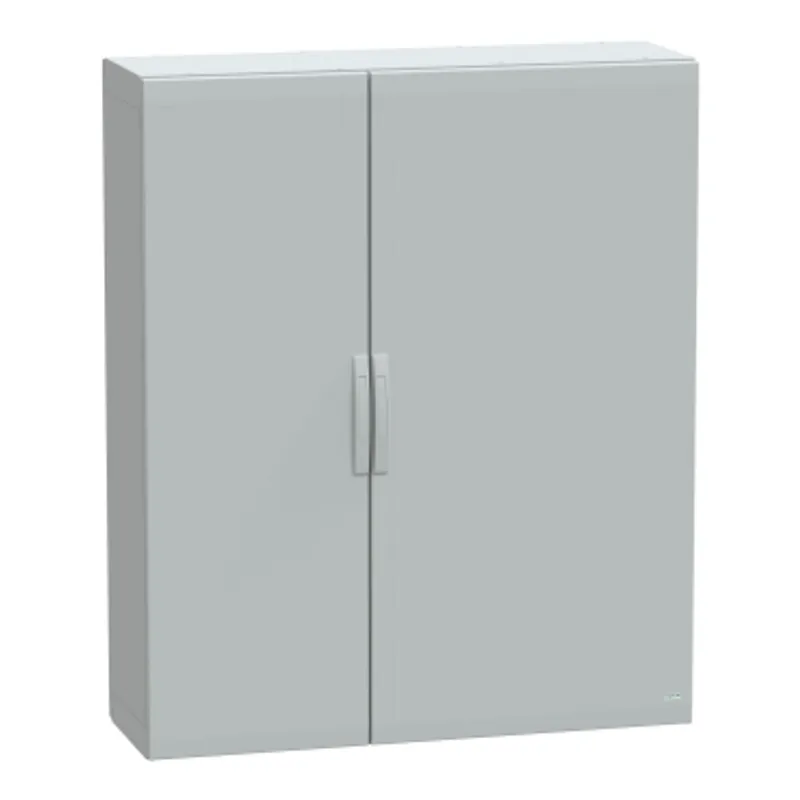

What is the Schneider Electric NSYPLA15124G?
This PLA is a multi-purpose, floor-standing unit that is suitable for various applications It is 1500mm in height, 1250mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and comprises two side parts, two plain front doors, and two rear panels The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert The doors and rear panels are also removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1500 mm |
| Nominal width | 1250 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 2 door(s) |
| Door opening side | Right and left (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 1, NEMA 2, NEMA 13, NEMA 12 |
| Product certifications | DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 151.000 cm × 128.000 cm × 45.000 cm (L × W × H), 71.400 kg |
| Package 2 | 2 PAL, 130.000 cm × 100.000 cm × 164.000 cm (L × W × H), 154.800 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPLA15124G: frequently asked questions
When can NSYPLA15124G be shipped?
NSYPLA15124G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLA15124G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLA15124G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA15124G, subject to availability and destination.
