Schneider Electric NSYPLA1074TG
Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x750x420mm, IP65, IK08
- MPN
- NSYPLA1074TG
- EAN
- 3606480774508
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA1074TG?

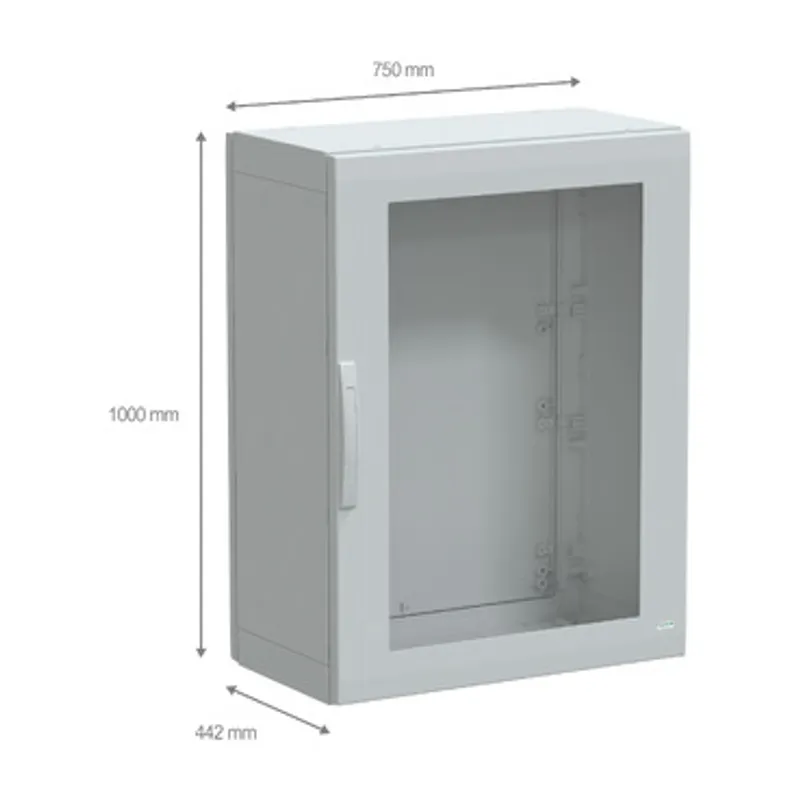

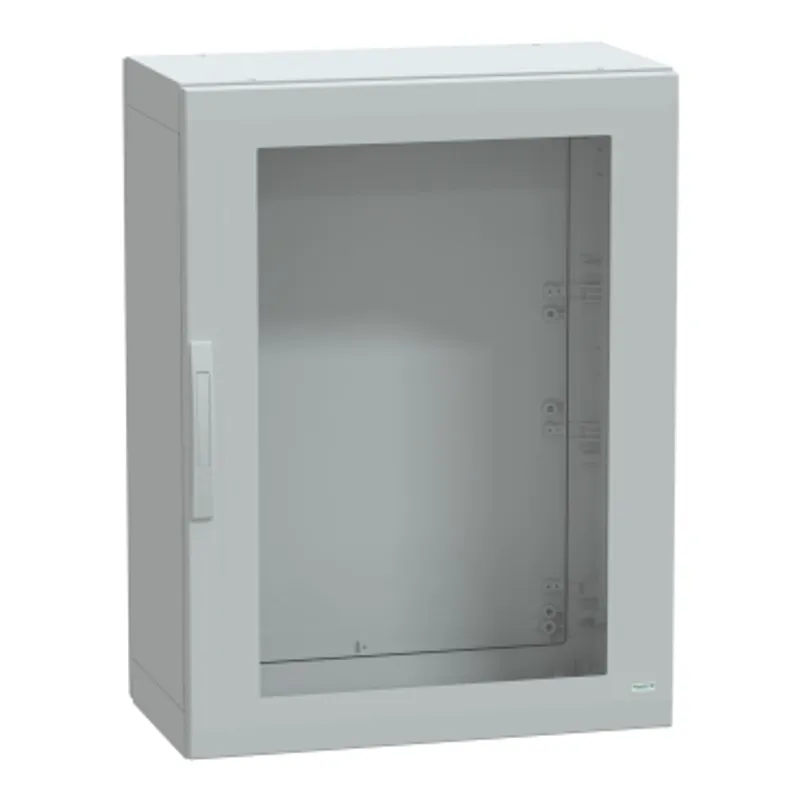

This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 1000mm in height, 750mm in width, and 420mm in depth It is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) It consists of two side parts, one transparent front door, and one rear panel The door can be opened up to 120° from either the right or left side, and is secured with a four-point lock and a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard It is rated IK08 (IEC 62262), indicating medium resistance to impacts It is also rated IP65 (IEC 60529), offering complete protection against dust and water
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1000 mm |
| Nominal width | 750 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Transparent front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 2, NEMA 3X, NEMA 13, NEMA 5, NEMA 3, NEMA 3S, NEMA 1, NEMA 3R, NEMA 12 |
| Product certifications | DNV Marine, UL/cUL listed, Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 48.000 cm × 79.000 cm × 100.000 cm (L × W × H), 31.000 kg |
| Package 2 | 2 PAM, 120.000 cm × 100.000 cm × 115.000 cm (L × W × H), 75.000 kg |
