Schneider Electric NSYPLA10103G

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1000x320mm, IP65, IK10

MPN
NSYPLA10103G
EAN
3606480774355
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLA10103G?

This PLA is a versatile, floor-standing solution that is suitable for various applications It comes with a sealed top and bottom part, assembled with side parts The enclosure has nominal dimensions of 1000mm in height, 1000mm in width, and 320mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) and comprises two side parts, two plain front doors, and one rear panel The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert The doors and rear panel are also removable for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLA
Nominal height1000 mm
Nominal width1000 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 2 door
Body typeSealed top and bottom part assembled with side parts
Door typePlain front
Number of doors2 door(s)
Door opening sideRight and left (120 °)
Lock type4 points lock, 5 mm double-bar
Accessibility for operationFront, Rear
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208, UL 508 A
NEMA degree of protectionNEMA 12, NEMA 1, NEMA 13, NEMA 2
Product certificationsVeritas, DNV Marine, UL/cUL listed
Electrical insulation classClass II
IP degree of protectionIP65 conforming to IEC 60529 (completely sealed)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 102.000 cm × 101.000 cm × 35.000 cm (L × W × H), 39.000 kg
Package 23 PAM, 120.000 cm × 100.000 cm × 115.000 cm (L × W × H), 135.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLA10103G: frequently asked questions

When can NSYPLA10103G be shipped?

NSYPLA10103G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLA10103G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLA10103G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA10103G, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPIN54 – Internal door for PanelSeT WM encl. H500xW400 steel, RAL7035.Adjustable in depth
Schneider Electric
NSYPIN54

Internal door for PanelSeT WM encl. H500xW400 steel, RAL7035.Adjustable in depth

Schneider Electric NSYPIN64 – Internal door for PanelSeT WM encl. H600xW400 steel, RAL7035.Adjustable in depth
Schneider Electric
NSYPIN64

Internal door for PanelSeT WM encl. H600xW400 steel, RAL7035.Adjustable in depth

Schneider Electric NSYPIN75 – Internal door for PanelSeT WM encl. H700xW500 steel, RAL7035.Adjustable in depth
Schneider Electric
NSYPIN75

Internal door for PanelSeT WM encl. H700xW500 steel, RAL7035.Adjustable in depth

Schneider Electric NSYPIN86 – Internal door for PanelSeT WM encl. H800xW600 steel, RAL7035.Adjustable in depth
Schneider Electric
NSYPIN86

Internal door for PanelSeT WM encl. H800xW600 steel, RAL7035.Adjustable in depth

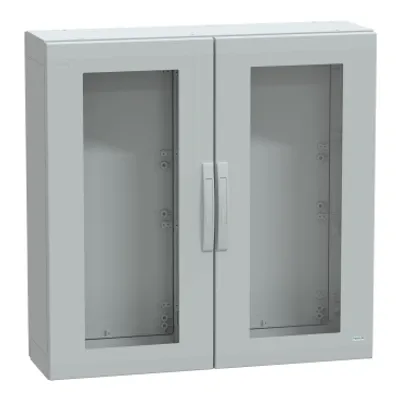

Schneider Electric NSYPLA10103TG – Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1000x320mm, IP65, IK08
