Schneider Electric NSYPHDZT1574P

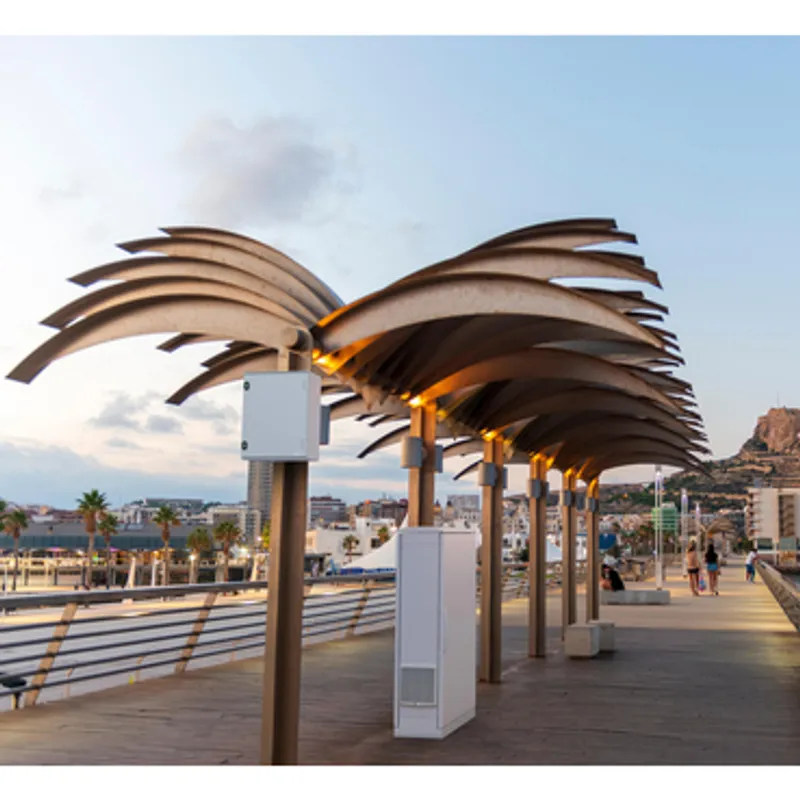

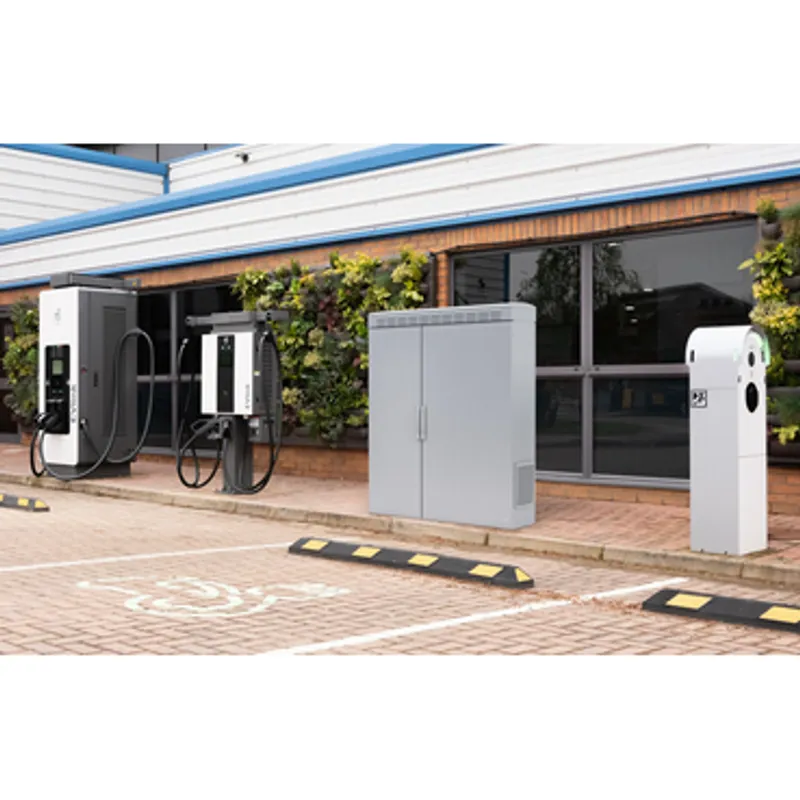

PanelSeT PHD outdoor heavy duty - enclosure H1593 W750 D420 IP55 plain door

MPN
NSYPHDZT1574P
EAN
3606480676093
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPHDZT1574P?

Schneider Electric PanelSeT PHD outdoor heavy duty - enclosure H1593 W750 D420 IP55 plain door, manufacturer part number NSYPHDZT1574P. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
ProductPHD
ApplicationOutdoor heavy duty
CertificationUL conforming to UL 508 A 2007, Bureau Veritas conforming to IEC 61969-3 2011, Bureau Veritas conforming to IEC 61439-5 2010, DEKRA conforming to IEC 62208 2011
Enclosure typeMulti-purpose
CategorySuitable enclosure
VersionPHDZT
Enclosure height with canopy1593 mm
Canopy height38 mm
Enclosure width750 mm
Enclosure depth420 mm
Enclosure mountingFloor-standing
Device composition1 body in polyester double reinforced with fibreglass, 1 door retainer in steel with anti-corrosive coating, 1 document pocket in plastic A4 format, 1 cable gland plate in aluminium, 1 canopy in polyester reinforced with fibreglass, 1 doors in polyester double reinforced with fibreglass
Body typeSealed assembled body
Door typePlain
Number of doors1 door(s)
Door opening sideRight or left (120 °)
Lock type2 points lock, handle with 1242E key lock and padlock
Accessibility for operationFront, Bottom
Maximum lifting load500 kg
Removable partsDoor by hinges, Canopy by fixing element, Cable gland plate by fixing element
MaterialPolyester double reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 61439-5, IEC 62208, UL 508 A, IEC 61969-3
Electrical insulation classClass II conforming to IEC 61439-1 2011
IP degree of protectionIP55 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Mechanical robustnessVandal-proof conforming to EN/IEC 61439-5 version 2010
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-45…80 °C conforming to IEC 61969-3 class 1
Ambient air temperature for storage-25…40 °C
Corrosion withstand90…100 % conforming to ISO 12944 C4H
Environmental withstandSolar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011, Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011, Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013, Formation of ice and frost: class 1 conforming to IEC 61969-3:2011, Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011, : class 1 conforming to IEC 61969-3:2011
Thermal management optionsFan: 1500 W for a maximum noise level of 60 dB, With external cooling 4000 W, Natural: 1008 W at -25 °C, Natural: 441 W at 20 °C, Natural: 189 W at 40 °C, According to cooling architecture 1500 W

Packaging

Package 11 PCE, 45.000 cm × 75.000 cm × 161.000 cm (L × W × H), 48.150 kg
Package 22 PAM, 120.000 cm × 100.000 cm × 173.000 cm (L × W × H), 110.800 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPHDZT1574P: frequently asked questions

When can NSYPHDZT1574P be shipped?

NSYPHDZT1574P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPHDZT1574P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPHDZT1574P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPHDZT1574P, subject to availability and destination.
