Schneider Electric NSYPHDZT1254
PanelSeT PHD outdoor heavy duty-enclosure H1343 W500 D420 IP55 anti-posting door
- MPN
- NSYPHDZT1254
- EAN
- 3606480663482
- Category
- PanelSeT for outdoors operation
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYPHDZT1254 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

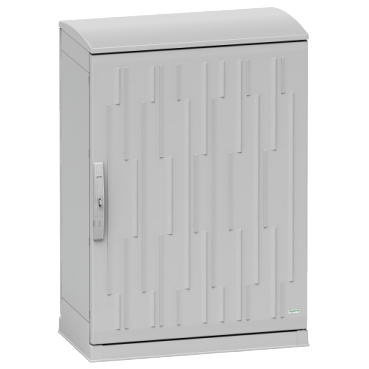

What is the Schneider Electric NSYPHDZT1254?
Schneider Electric PanelSeT PHD outdoor heavy duty-enclosure H1343 W500 D420 IP55 anti-posting door, manufacturer part number NSYPHDZT1254. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product | PHD |
| Application | Outdoor heavy duty |
| Certification | UL conforming to UL 508 A 2007, Bureau Veritas conforming to IEC 61969-3 2011, Bureau Veritas conforming to IEC 61439-5 2010, DEKRA conforming to IEC 62208 2011 |
| Enclosure type | Multi-purpose |
| Category | Suitable enclosure |
| Version | PHDZT |
| Enclosure height with canopy | 1343 mm |
| Canopy height | 38 mm |
| Enclosure width | 500 mm |
| Enclosure depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 body in polyester double reinforced with fibreglass, 1 door retainer in steel with anti-corrosive coating, 1 document pocket in plastic A4 format, 1 cable gland plate in aluminium, 1 canopy in polyester reinforced with fibreglass, 1 doors in polyester double reinforced with fibreglass |
| Body type | Sealed assembled body |
| Door type | Anti-posting |
| Number of doors | 1 door(s) |
| Door opening side | Right or left (120 °) |
| Lock type | 2 points lock, handle with 1242E key lock and padlock |
| Accessibility for operation | Front, Bottom |
| Maximum lifting load | 500 kg |
| Removable parts | Door by hinges, Canopy by fixing element, Cable gland plate by fixing element |
| Material | Polyester double reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 61439-5, IEC 62208, IEC 61969-3, UL 508 A |
| Electrical insulation class | Class II conforming to IEC 61439-1 2011 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Mechanical robustness | Vandal-proof conforming to EN/IEC 61439-5 version 2010 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -45…80 °C conforming to IEC 61969-3 class 1 |
| Ambient air temperature for storage | -25…40 °C |
| Corrosion withstand | 90…100 % conforming to ISO 12944 C4H |
| Environmental withstand | Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011, Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011, Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013, Formation of ice and frost: class 1 conforming to IEC 61969-3:2011, Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011, : class 1 conforming to IEC 61969-3:2011 |
| Thermal management options | Fan: 1500 W for a maximum noise level of 60 dB, With external cooling 4000 W, Natural: 661 W at -25 °C, Natural: 289 W at 20 °C, Natural: 124 W at 40 °C, According to cooling architecture 1500 W |
Packaging
| Package 1 | 1 PCE, 45.000 cm × 65.000 cm × 135.000 cm (L × W × H), 36.600 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 148.000 cm (L × W × H), 158.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPHDZT1254: frequently asked questions
Can I still buy the NSYPHDZT1254 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYPHDZT1254, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYPHDZT1254 be shipped?
NSYPHDZT1254 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPHDZT1254 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPHDZT1254 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPHDZT1254, subject to availability and destination.
