Schneider Electric NSYMP184

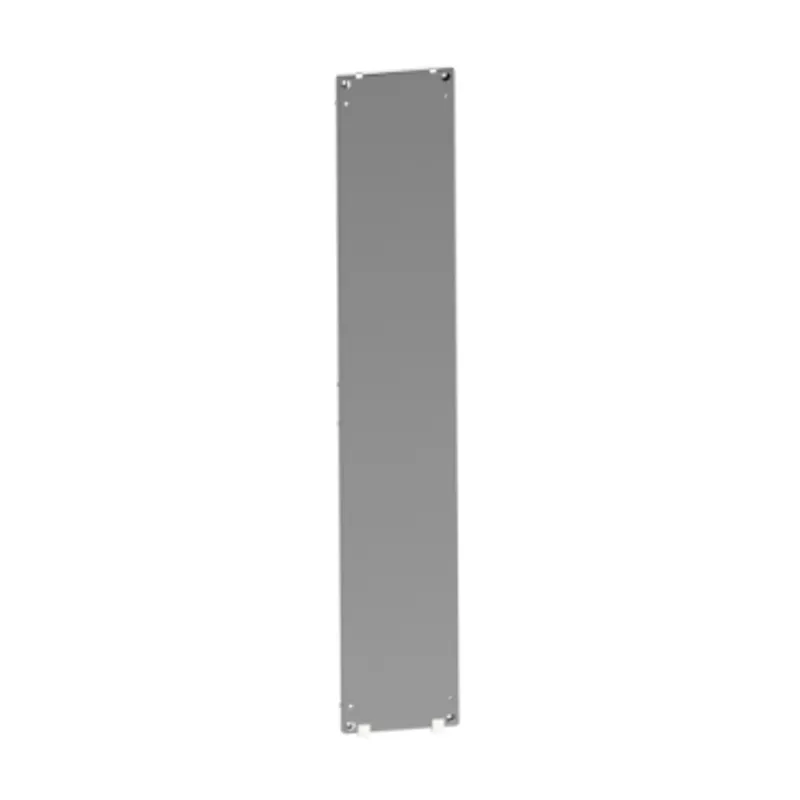

Plain mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1800 W400mm, galvanized steel
- MPN
- NSYMP184
- EAN
- 3606489807665
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMP184?
This mounting accessory is a multi-purpose mounting plate with dimensions H1697xW296xD27. It is compatible with the Spacial SF enclosure with dimensions H1800mmxW400mm (any depth). It is made of galvanized steel and can be mounted in the back of the enclosure or in an intermediate position. The depth is adjustable with a pitch of 25 mm, provided with plastic shoes for easier sliding. It holds loads up to 300 kg/m2, with a maximum of 600 kg if mounted in the back of the enclosure and 500 kg in the intermediate position. Compliant with RoHs and REACH directives.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1800 mm W: 400 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 1650 mm, Nominal: 1800 mm, Real: 1697 mm |
| Width | Fixing centers: 250 mm, Nominal: 400 mm, Real: 296 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 171.000 cm × 31.000 cm × 4.000 cm (L × W × H), 13.000 kg |
| Package 2 | 20 P2M, 200.000 cm × 120.000 cm × 46.000 cm (L × W × H), 291.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMP184: frequently asked questions
When can NSYMP184 be shipped?
NSYMP184 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMP184 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMP184 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMP184, subject to availability and destination.
