Schneider Electric NSYEC381
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W300 D800mm, fixed by clips
- MPN
- NSYEC381
- EAN
- 3606480211515
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC381?

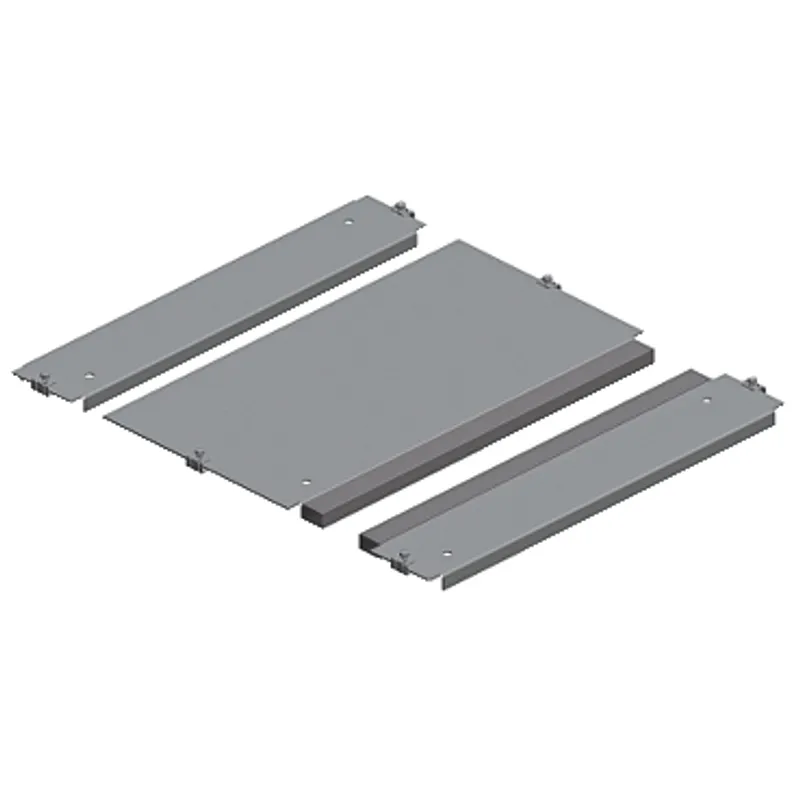

This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN, PrismaSeT and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 300 and 800 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Prisma application, Multi-purpose |
| Range compatibility | Prisma Prisma PH, PanelSeT PanelSeT SFP SFP, PanelSeT PanelSeT SFM SFM |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Width | Nominal: 300 mm, Useful: 116 mm |
| Depth | Nominal : 800 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 65.500 cm × 12.500 cm × 3.000 cm (L × W × H), 1.936 kg |
| Package 2 | 36 P12, 120.000 cm × 80.000 cm × 35.000 cm (L × W × H), 80.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC381: frequently asked questions
When can NSYEC381 be shipped?
NSYEC381 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC381 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC381 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC381, subject to availability and destination.
