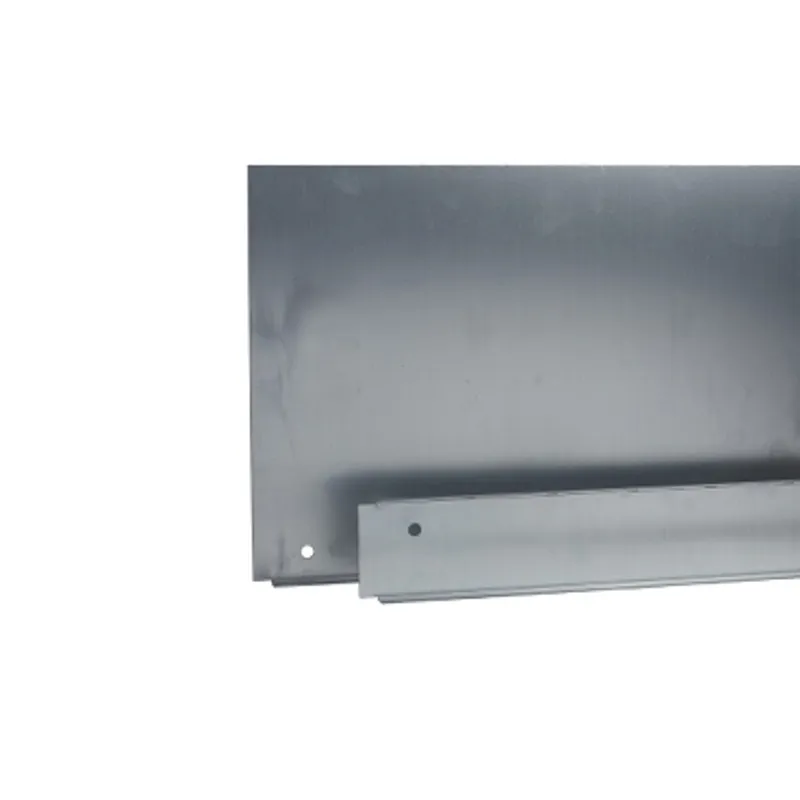

Schneider Electric NSYEC1241
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1200 D400mm, fixed by clips
- MPN
- NSYEC1241
- EAN
- 3606485126364
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC1241?
This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 1200 and 400 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 35 mm |
| Width | Nominal: 1200 mm, Useful: 1016 mm |
| Depth | Nominal : 400 mm, Real : 315 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 51.500 cm × 22.500 cm × 3.500 cm (L × W × H), 4.500 kg |
| Package 2 | 48 P12, 120.000 cm × 80.000 cm × 44.000 cm (L × W × H), 224.464 kg |
