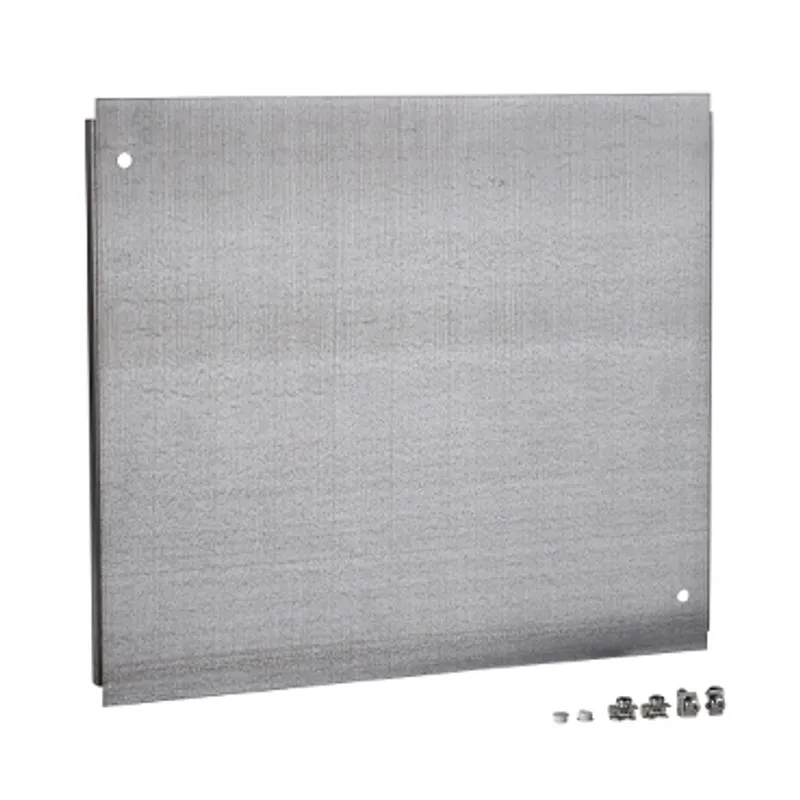

Schneider Electric NSYEC105
Plain cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1000 D500mm, fixed by clips
- MPN
- NSYEC105
- EAN
- 3606485126081
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC105?
This is a multi-purpose plain cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 1000 and 500 mm respectively. The set contains one plate with and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | Plain |
| Device composition | Fixing elements, 1 plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 30 mm |
| Width | Nominal: 1000 mm, Useful: 816 mm, Real: 855 mm |
| Depth | Nominal : 500 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 85.500 cm × 42.000 cm × 3.000 cm (L × W × H), 4.802 kg |
| Package 2 | 15 P12, 120.000 cm × 80.000 cm × 56.000 cm (L × W × H), 81.000 kg |
