Schneider Electric NSYDS3D68
Plain door for PanelSeT S3D H600xW800 RAL 7035, with lock
- MPN
- NSYDS3D68
- EAN
- 3606480427022
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDS3D68?

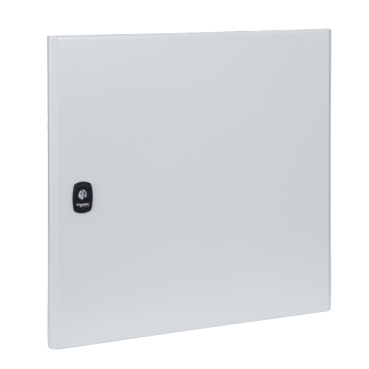

"Plain door for PanelSeT S3D" "The product is to be mounted on front of the enclosure" "The nominal width is 800mm" "The nominal height is 600mm" "The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66" "Hinges left or right (120 ° opening angle)" "Maximum load is 50 kg/m²" "The door has 1 locks with 3mm double bar"
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT S3D |
| Device composition | 1 door, locking system |
| Quantity per set | Set of 1 |
| Material | Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Textured epoxy polyester |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 50 kg/m² |
| Height | Nominal: 600 mm |
| Width | Nominal: 800 mm |
| Net weight | 5.94 kg |
Packaging
| Package 1 | 1 PCE, 5.000 cm × 61.000 cm × 82.000 cm (L × W × H), 8.120 kg |
| Package 2 | 11 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 100.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDS3D68: frequently asked questions
When can NSYDS3D68 be shipped?
NSYDS3D68 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDS3D68 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDS3D68 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDS3D68, subject to availability and destination.
