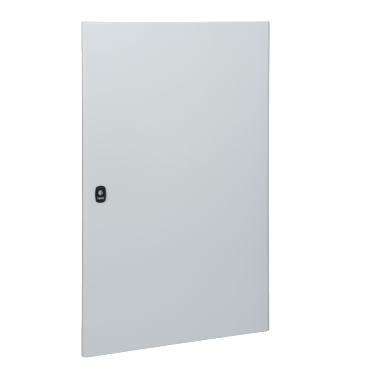

Schneider Electric NSYDS3D126R
Plain right door PanelSeT S3D H1200xW600 RAL 7035, with lock
- MPN
- NSYDS3D126R
- EAN
- 3606480427312
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDS3D126R?
"Plain door for PanelSeT S3D" "The product is to be mounted on front of the enclosure" "The nominal width is 600mm" "The nominal height is 1200mm" "The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66" "Hinges left or right (120 ° opening angle)" "Maximum load is 50 kg/m²" "The door has 1 locks with 3mm double bar"
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Right door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT S3D |
| Device composition | 1 door, locking system |
| Quantity per set | Set of 1 |
| Material | Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Textured epoxy polyester |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 50 kg/m² |
| Height | Nominal: 1200 mm |
| Width | Nominal: 600 mm |
| Net weight | 8.91 kg |
Packaging
| Package 1 | 1 PCE, 122.000 cm × 61.000 cm × 5.000 cm (L × W × H), 8.910 kg |
| Package 2 | 12 P12, 120.000 cm × 80.000 cm × 85.000 cm (L × W × H), 167.000 kg |
