Schneider Electric NSYDPLM108TG

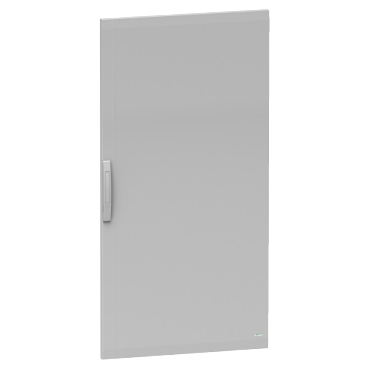

Glazed door for PLM108T with locking system
- MPN
- NSYDPLM108TG
- EAN
- 3606485422411
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDPLM108TG?
"Glazed door for Thalassa PLM" "The product is to be mounted on front of the enclosure" "The width is 852mm" The height is 1056mm. The door is made of polyester reinforced with fibreglass (RAL 7035) and has a degree of IP protection IP66. Hinges right (180 ° opening angle opening angle) or left. Maximum load is 50 kg/m². The door has 1 locks with 3mm double bar. "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 door, locking system |
| Quantity per set | Set of 1 |
| Material | Door: polyester reinforced with fibreglass |
| Colour | Door: grey (RAL 7035) |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Door type | Glazed |
| Door opening side | Right (180 °), Left |
| Maximum load | 50 kg/m² |
| Height | 1056 mm |
| Width | 852 mm |
Packaging
| Package 1 | 1 PCE, 106.000 cm × 86.500 cm × 5.000 cm (L × W × H), 11.548 kg |
| Package 2 | 15 PAM, 120.000 cm × 100.000 cm × 90.000 cm (L × W × H), 187.220 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDPLM108TG: frequently asked questions
When can NSYDPLM108TG be shipped?
NSYDPLM108TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDPLM108TG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDPLM108TG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDPLM108TG, subject to availability and destination.
