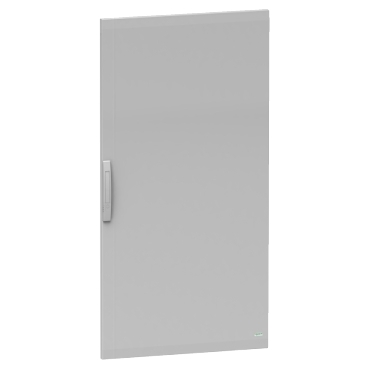

Schneider Electric NSYDPLA127HG
PLA door 1250x750 with handle
- MPN
- NSYDPLA127HG
- EAN
- 3606485422596
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDPLA127HG?
Plain door for PanelSeT PLA The product is to be mounted on front of the enclosure The width is 750mm The height is 1250mm The door is made of polyester reinforced with fibreglass (RAL 7035) and has a degree of IP protection IP66 Hinges left or right (120 ° opening angle opening angle) or left or right (180 ° opening angle opening angle) Maximum load is 30 kg/m² The door has 1 locks with 5mm double bar "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT PLA |
| Device composition | 1 door, locking system |
| Quantity per set | Set of 1 |
| Material | Door: polyester reinforced with fibreglass |
| Colour | Door: grey (RAL 7035) |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | Plain |
| Door opening side | Reversible (120 °), Reversible (180 °) |
| Maximum load | 30 kg/m² |
| Height | 1250 mm |
| Width | 750 mm |
Packaging
| Package 1 | 1 PCE, 127.500 cm × 77.500 cm × 4.000 cm (L × W × H), 11.132 kg |
| Package 2 | 15 PAL, 127.500 cm × 100.000 cm × 75.000 cm (L × W × H), 180.000 kg |
