Schneider Electric NSYDPHD107P
Plain door + lock syst. for Thalassa PHD enclosure - 107
- MPN
- NSYDPHD107P
- EAN
- 3606480841316
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

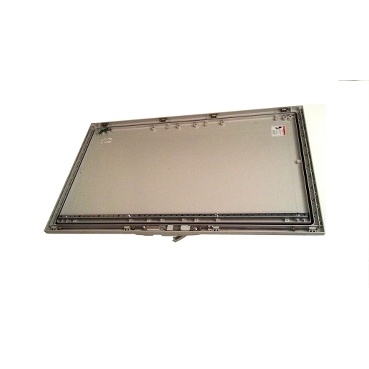

What is the Schneider Electric NSYDPHD107P?
Plain door without locking for PanelSeT PHD suitable enclosure The product is to be mounted on front of the enclosure The door is made of polyester double reinforced with fibreglass (RAL 7035) IK10 conforming to IEC 62262 Hinges left or right (120 ° opening angle) Key number is 1242 E Ensures fire resistance conforming to EN 1794-2: 2011 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Offer type | Spare part |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Heavy duty |
| For enclosure nominal dimensions | - H: 1093 mm W: 700 mm |
| Mounting location | Front |
| Range compatibility | PanelSeT suitable enclosure |
| Device composition | Hinges, lock, door, door retainer, handle |
| Quantity per set | Set of 1 |
| Material | Polyester double reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Key number | 1242 E |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Fire resistance conforming to EN 1794-2: 2011 |
Packaging
| Package 1 | 1 PCE, 100.000 cm × 79.000 cm × 8.000 cm (L × W × H), 7.980 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDPHD107P: frequently asked questions
When can NSYDPHD107P be shipped?
NSYDPHD107P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDPHD107P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDPHD107P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDPHD107P, subject to availability and destination.
