Schneider Electric NSYDCRN22

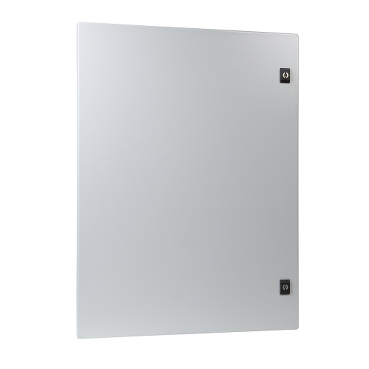

Plain door PanelSeT CRN H200xW200 RAL 7035, with lock
- MPN
- NSYDCRN22
- EAN
- 3606480435447
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYDCRN22 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDCRN22?
Plain door for PanelSeT CRN The product is to be mounted on front of the enclosure The nominal width is 200mm The nominal height is 200mm The door is made of sheet steel (RAL 7035) Hinges left or right (120 ° opening angle) Maximum load is 50 kg/m² The door has 1 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT CRN |
| Device composition | 1 door, locking system |
| Quantity per set | Set of 1 |
| Material | Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Textured epoxy polyester |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 50 kg/m² |
| Height | Nominal: 200 mm |
| Width | Nominal: 200 mm |
| Net weight | 0.77 kg |
Packaging
| Package 1 | 1 PCE, 41.0 cm × 31.0 cm × 4.0 cm (L × W × H), 770.0 g |
