Schneider Electric
NSYDB2015MMetal industrial cut-out box - low plain cover - H206xW156xD83 - IP55 - grey
Schneider Electric NSYDBN2015

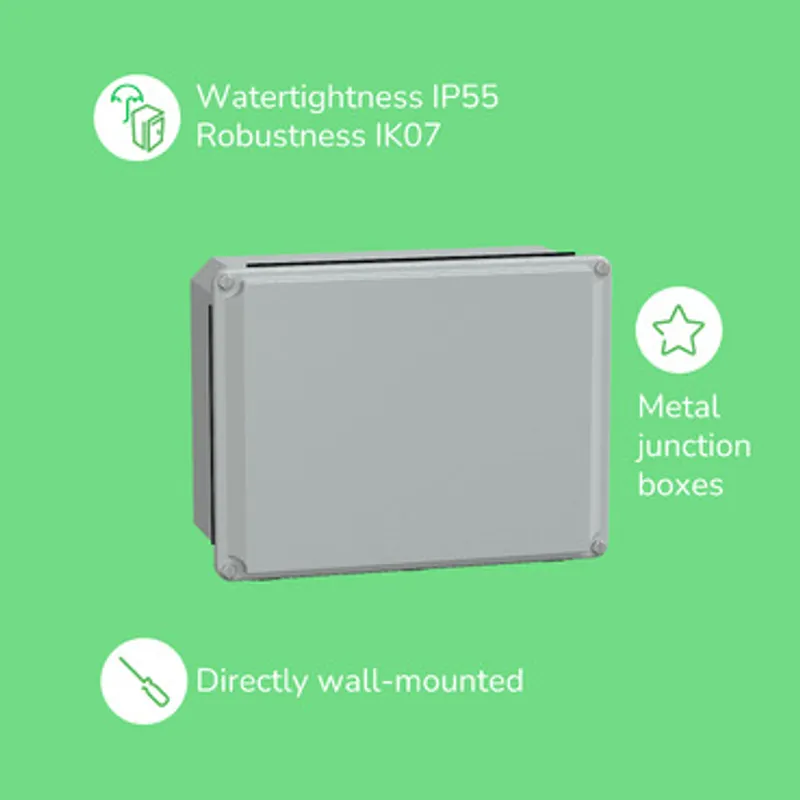

Metal industrial box - low plain cover - H206xW156xD83 - IP55 - grey RAL 7035
- MPN
- NSYDBN2015
- EAN
- 3606480187858
- Category
- PanelSeT SDB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDBN2015?
Schneider Electric Metal industrial box - low plain cover - H206xW156xD83 - IP55 - grey RAL 7035, manufacturer part number NSYDBN2015. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | PanelSeT SDB |
| Device application | Multi-purpose |
| Product or component type | Junction box |
| enclosure type | Empty enclosure |
| Type of front cover | Low plain cover |
| Colour | Light grey (RAL 7035) |
| Enclosure nominal height | 206 mm |
| Enclosure nominal width | 156 mm |
| Enclosure nominal depth | 83 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 1 cover screw |
| Cover fixing | Screw |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Net weight | 1.023 kg |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 16.000 cm × 9.000 cm (L × W × H), 942.000 g |
| Package 2 | 5 CAR, 45.000 cm × 23.000 cm × 18.000 cm (L × W × H), 5.364 kg |
| Package 3 | 250 PAM, 120.000 cm × 100.000 cm × 92.500 cm (L × W × H), 281.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDBN2015: frequently asked questions
When can NSYDBN2015 be shipped?
NSYDBN2015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDBN2015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDBN2015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDBN2015, subject to availability and destination.
